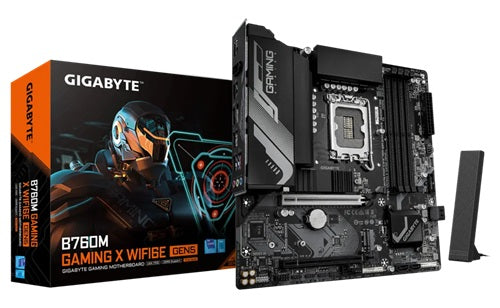

Gigabyte B760M GAMING X WIFI6E GEN5 Micro-ATX LGA1700 DDR5 Motherboard

$264.16

The Gigabyte B760M GAMING X WIFI6E GEN5 is a Micro-ATX motherboard for 12th, 13th and 14th Gen Intel Core processors on the LGA1700 socket. It suits gaming and home-office builds that want a PCIe 5.0 graphics slot, DDR5 memory, two PCIe 4.0 M.2 SSDs and built-in Wi-Fi 6E without moving to a full ATX case.

Key features

  • PCIe 5.0 x16 slot: room for the latest graphics cards, wired directly to the CPU.
  • 4 × DDR5 slots, up to 256 GB: supports DDR5 up to 7600 MT/s (O.C.) with XMP profiles in a dual-channel layout.
  • Two PCIe 4.0 M.2 slots: fit two fast NVMe SSDs (one 2280, one up to 22110), plus 4 × SATA 6Gb/s ports with RAID 0/1/5/10.
  • Wi-Fi 6E and Bluetooth 5.3: Intel Wi-Fi 6E AX210 with 2.4/5/6 GHz bands, plus Realtek 2.5GbE LAN for wired connections.
  • Easy BIOS updates: a Q-Flash Plus button lets you update the BIOS, plus Smart Backup and GIGABYTE Control Center support.

Specifications

Model B760M GAMING X WIFI6E GEN5 (B760M G X WF6E GEN5)
Socket / CPU support LGA1700: 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron
Chipset Intel B760
Memory 4 × DDR5 DIMM, up to 256 GB (64 GB per DIMM), dual channel, up to DDR5 7600 (O.C.), XMP support
Expansion slots 1 × PCIe 5.0 x16 (CPU); 1 × PCIe 3.0 x16 slot running at x4 (chipset)
Storage 1 × M.2 2280 PCIe 4.0 x4/x2 (CPU); 1 × M.2 22110/2280 PCIe 4.0 x4/x2 (chipset); 4 × SATA 6Gb/s; RAID 0/1/5/10 (SATA)
Onboard graphics outputs 1 × HDMI (up to 4096x2160@60 Hz), 1 × DisplayPort (up to 4096x2304@60 Hz), CPU dependent
LAN Realtek 2.5GbE
Wireless Intel Wi-Fi 6E AX210 (802.11a/b/g/n/ac/ax, 2.4/5/6 GHz), Bluetooth 5.3
Audio Realtek audio codec, 2/4/5.1/7.1-channel, S/PDIF Out support
Rear USB 3 × USB 3.2 Gen 1, 5 × USB 2.0/1.1
Internal USB 1 × USB Type-C header (USB 3.2 Gen 2), 1 × USB 3.2 Gen 1 header, 2 × USB 2.0/1.1 headers
Fan / RGB headers 1 × CPU fan, 3 × system fan, 3 × addressable LED, 1 × RGB LED
Operating system Windows 11 64-bit, Windows 10 64-bit
Form factor Micro ATX, 24.4 × 24.4 cm

Compatibility

Gigabyte lists support for LGA1700 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors; check Gigabyte's CPU support list for the BIOS version your chip needs. It takes DDR5 memory only (not DDR4). It fits cases that support Micro-ATX motherboards, such as the compact DeepCool CH160 PLUS Micro-ATX case. For cooling, LGA1700 air coolers such as the DeepCool AG300 are compatible.

Who it's for

Suited to: gamers and builders using 12th to 14th Gen Intel CPUs who want DDR5, PCIe 5.0 graphics and Wi-Fi 6E in a compact Micro-ATX system.

Not suited to: AMD processors, Intel Core Ultra (LGA1851) CPUs, or anyone reusing DDR4 memory.

FAQs

Does this motherboard support DDR4?

No. It has 4 × DDR5 DIMM slots and supports DDR5 memory only.

Does it have built-in Wi-Fi?

Yes. It includes Intel Wi-Fi 6E AX210 with Bluetooth 5.3, plus Realtek 2.5GbE wired LAN.

How many M.2 SSDs can I install?

Two. Both M.2 slots support PCIe 4.0 x4/x2 NVMe SSDs, and there are also 4 SATA 6Gb/s ports.

Which CPUs are supported?

LGA1700 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors.
