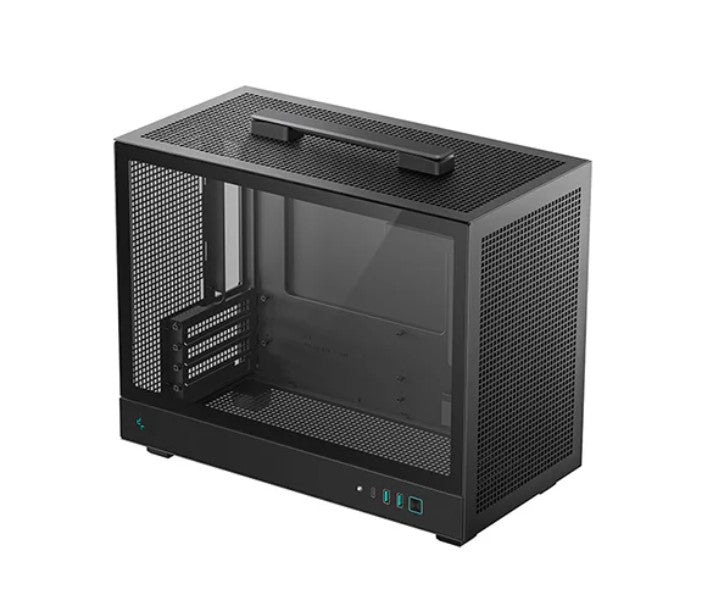

DeepCool CH160 PLUS Portable Micro-ATX Compact Case, R-CH160-BKNGM0-G

$110.82

The DeepCool CH160 PLUS is a portable Micro-ATX PC case with a built-in carry handle, made for LAN-party gamers and anyone who needs a compact desktop that still takes full-size parts. Mesh panels wrap the case for airflow, and it fits graphics cards up to 342mm and a 240mm radiator.

Key features

  • Integrated carry handle: pick up and move your PC without grabbing the panels.
  • Micro-ATX in a compact footprint: 375 × 195 × 323.5 mm, yet it takes Micro-ATX and Mini-ITX boards with 4 expansion slots.
  • Fits large GPUs and coolers: graphics cards up to 342mm (328mm with a front fan) and CPU air coolers up to 164mm tall.
  • Liquid cooling ready: mount a 120mm or 240mm radiator at the top, or a 120mm radiator at the rear.
  • Front USB-C (Gen2): one USB Type-C Gen2 port, two USB 3.0 ports and a hybrid audio/mic jack, with dust filters on three sides.

Specifications

Model / P/N CH160 PLUS / R-CH160-BKNGM0-G
Colour Black
Dimensions (L × W × H) 375 × 195 × 323.5 mm
Net weight 4.2 kg
Materials ABS, SPCC steel, tempered glass
Motherboard support Mini-ITX, Micro-ATX
Expansion slots 4
Drive bays 1 × 3.5", 1+1 × 2.5"
Front I/O 2 × USB 3.0, 1 × USB Type-C Gen2, 1 × audio/mic
Pre-installed fans None
Fan support Front 1 × 120mm or 1 × 140mm (with SFX PSU); top 2 × 120mm; rear 1 × 120mm
Radiator support Top 120/240mm; rear 120mm
CPU cooler height Up to 164 mm
GPU length Up to 342 mm (328 mm with front fan)
Power supply ATX (PS2) up to 140 mm, SFX, SFX-L

Compatibility

The CH160 PLUS takes Mini-ITX and Micro-ATX motherboards, ATX power supplies up to 140mm long, or SFX and SFX-L units. A 140mm front fan fits only when you use an SFX power supply. CPU air coolers up to 164mm tall fit, such as the DeepCool AG300 single-tower cooler. DeepCool also lists the case as compatible with its HB-01 headset holder and PIXEL decorative case bits.

Who it's for

Suited to: LAN-party and portable gaming builds, small desks, and Micro-ATX systems with a full-length graphics card.

Not suited to: full ATX motherboards, ATX power supplies longer than 140mm, or radiators larger than 240mm. No fans are included, so budget for your own.

FAQs

Does the CH160 PLUS fit an ATX motherboard?

No. It supports Mini-ITX and Micro-ATX motherboards only.

What is the biggest graphics card it fits?

Up to 342mm long, or 328mm with a front fan installed.

Can I use an ATX power supply?

Yes, as long as it is no longer than 140mm. SFX and SFX-L power supplies also fit.

Does it come with fans?

No. There are no pre-installed fans, but it takes up to four fans across the front, top and rear.

Browse more DeepCool cases, coolers and power supplies.

  • SKU:
    R-CH160-BKNGM0-G
  • Vendor :DEEPCOOL
  • Product Type :Cases Accessories
