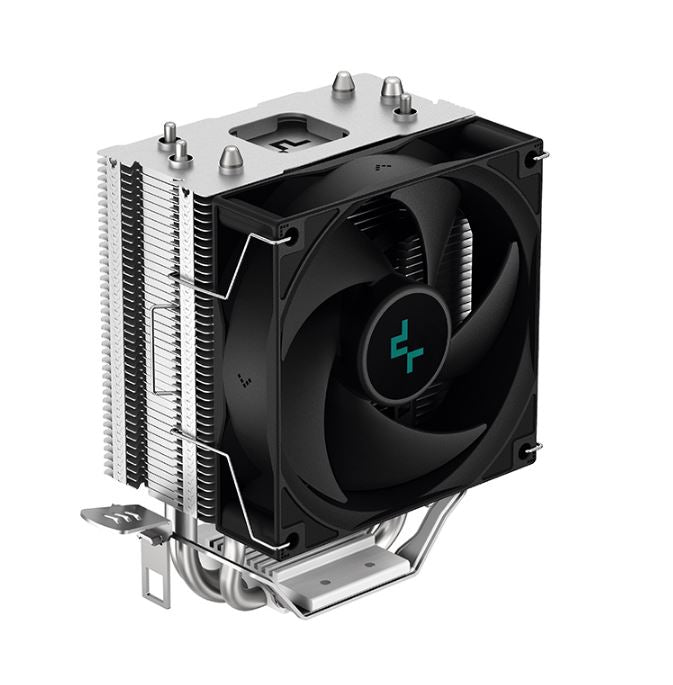

DeepCool AG300 Single Tower CPU Cooler, 92mm PWM Fan, R-AG300-BKNNMN-G

$40.62

The DeepCool AG300 is a compact single-tower CPU air cooler for budget and mainstream Intel and AMD desktop builds, rated for 150W heat dissipation. Three direct-contact copper heat pipes and a 92mm PWM fan keep everyday and gaming CPUs cool at no more than 30.5 dB(A).

Key features

  • 150W heat dissipation: enough headroom for most mainstream desktop processors, as rated by DeepCool.
  • 3 direct-contact copper heat pipes: the 6mm pipes touch the CPU directly to move heat quickly into the fin stack; nickel plating protects against copper corrosion.
  • 92mm PWM fan, up to 3050 RPM: the motherboard speeds the fan up or down with load, from 500 RPM, with noise of no more than 30.5 dB(A).
  • Compact 129mm height: at 119 × 77 × 129 mm it suits cases with limited CPU cooler clearance.
  • Pre-applied thermal paste: included mounting brackets and pre-applied paste make installation quicker.

Specifications

Model / P/N AG300 / R-AG300-BKNNMN-G
Product dimensions 119 × 77 × 129 mm
Heatsink dimensions 94 × 57 × 129 mm
Net weight 350 g
Heat pipes 3 × Ø6 mm, direct contact copper, nickel plated
Heat dissipation 150W
Fan dimensions 92 × 92 × 25 mm
Fan speed 500–3050 RPM ±10%
Fan airflow 36.75 CFM
Fan air pressure 2.89 mmAq
Fan noise ≤30.5 dB(A)
Fan connector 4-pin PWM
Bearing type Hydro bearing
Fan rated voltage / current 12 VDC / 0.13 A
Fan power consumption 1.56 W
Thermal paste Pre-applied

Compatibility

DeepCool lists the AG300 as compatible with these CPU sockets:

  • Intel: LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155
  • AMD: AM5, AM4

Check that your case supports a CPU cooler height of at least 129 mm.

Who it's for

Suited to: office PCs, budget gaming builds and upgrades from a stock cooler, especially in compact cases.

Not suited to: high-end CPUs that need more than 150W of cooling. For more headroom, consider the DeepCool AG400 PLUS dual-fan cooler or the DeepCool AK620 dual-tower CPU cooler.

FAQs

Does the DeepCool AG300 fit AMD AM5?

Yes. DeepCool lists AM5 and AM4 support, along with Intel LGA1851, 1700, 1200, 1151, 1150 and 1155.

How tall is the AG300?

The AG300 is 129 mm tall, with overall dimensions of 119 × 77 × 129 mm.

Do I need to buy thermal paste?

No. DeepCool ships the AG300 with thermal paste pre-applied to the base.

How loud is the AG300?

DeepCool rates the 92mm fan at no more than 30.5 dB(A), with PWM control from 500 to 3050 RPM.
