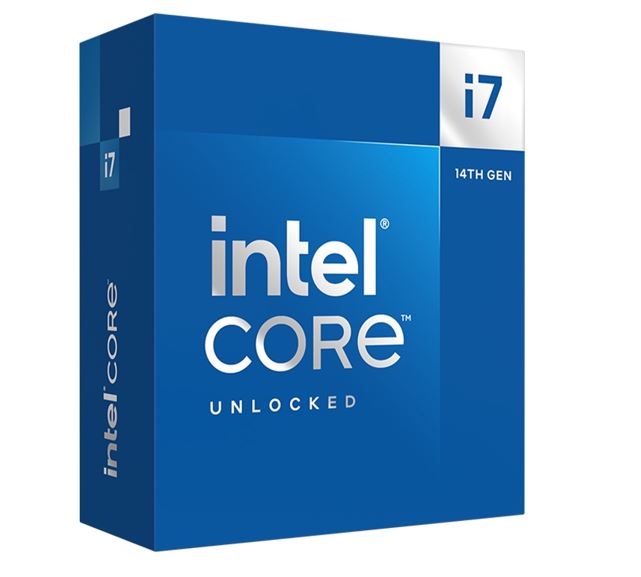

Intel Core i7-14700K 20-Core 28-Thread LGA1700 CPU, up to 5.6GHz

$700.50

The Intel Core i7-14700K is a 14th Gen desktop processor with 20 cores (8 Performance-cores and 12 Efficient-cores), 28 threads and a max turbo frequency of 5.6 GHz. It suits gamers, creators and workstation builders on the LGA1700 socket who want high multi-core performance plus built-in Intel UHD Graphics 770.

Key features

  • 20 cores, 28 threads: 8 Performance-cores up to 5.5 GHz and 12 Efficient-cores up to 4.3 GHz handle gaming, rendering and multitasking together.
  • Up to 5.6 GHz: Intel Turbo Boost Max Technology 3.0 frequency for fast single-threaded performance.
  • 33 MB Intel Smart Cache: plus 28 MB of total L2 cache to keep data close to the cores.
  • Intel UHD Graphics 770: drives up to 4 displays, up to 7680 x 4320 at 60Hz over DisplayPort, so you can run without a separate graphics card.
  • DDR5 and DDR4 support: up to DDR5 5600 MT/s or DDR4 3200 MT/s, up to 192 GB, plus PCI Express 5.0 and 4.0.

Specifications

Processor number i7-14700K
Ordering code BX8071514700K
Product collection Intel Core i7 Processors (14th gen), formerly Raptor Lake
Vertical segment Desktop
Lithography Intel 7
Total cores / threads 20 (8P + 12E) / 28
Max turbo frequency 5.6 GHz
P-core max turbo / base 5.5 GHz / 3.4 GHz
E-core max turbo / base 4.3 GHz / 2.5 GHz
Cache 33 MB Intel Smart Cache; 28 MB total L2
Processor base power / max turbo power 125 W / 253 W
Memory types Up to DDR5 5600 MT/s; up to DDR4 3200 MT/s
Max memory / channels 192 GB / 2
ECC memory supported Yes
Processor graphics Intel UHD Graphics 770 (300 MHz base, 1.6 GHz max)
Graphics output / displays eDP 1.4b, DP 1.4a, HDMI 2.1 / 4 displays
PCI Express 5.0 and 4.0, up to 20 lanes (1x16+4 or 2x8+4)
Socket FCLGA1700
Max operating temperature (TJUNCTION) 100 °C
Package size 45.0 x 37.5 mm

Compatibility

  • Socket: FCLGA1700 motherboards, such as the Gigabyte B760M GAMING X WIFI6E GEN5 LGA1700 motherboard. Check your board's CPU support list and BIOS version before installing.
  • Memory: DDR5 up to 5600 MT/s or DDR4 up to 3200 MT/s, depending on your motherboard.
  • Cooling and power: plan for a 125 W processor base power and up to 253 W maximum turbo power when choosing your CPU cooler and power supply.

Who it's for

Suited to: high-end gaming, streaming, video editing and workstation builds that benefit from 20 cores and 28 threads.

Not suited to: motherboards with AMD or other non-LGA1700 sockets, or compact, low-power builds. For a 65 W base power option, see the Intel Core i7-13700, or browse all Intel processors.

FAQs

What socket does the Intel Core i7-14700K use?

It uses the FCLGA1700 socket. Check your motherboard's CPU support list and update the BIOS if needed.

How many cores does the i7-14700K have?

It has 20 cores (8 Performance-cores and 12 Efficient-cores) and 28 threads.

Does the i7-14700K have integrated graphics?

Yes, it has Intel UHD Graphics 770, supporting up to 4 displays and up to 7680 x 4320 at 60Hz over DisplayPort.

How much power does the i7-14700K use?

Its processor base power is 125 W and its maximum turbo power is 253 W, so choose a cooler and power supply to suit.

  • SKU:
    BX8071514700K
  • Vendor :Intel
  • Product Type :CPU
