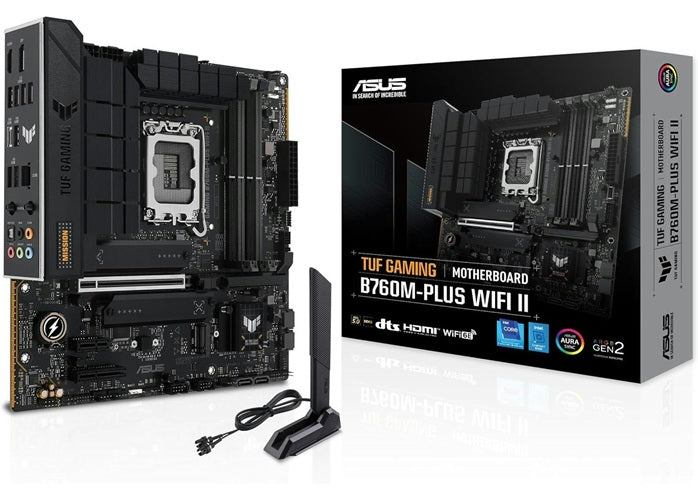

ASUS TUF Gaming B760M-PLUS WIFI II LGA1700 DDR5 mATX Motherboard

$273.17

The ASUS TUF Gaming B760M-PLUS WIFI II is a micro-ATX motherboard for Intel LGA1700 processors, with DDR5 memory support up to 192GB, a PCIe 5.0 x16 slot and three M.2 slots. It suits gamers and home or office PC builders using 12th, 13th or 14th Gen Intel Core CPUs who want Wi-Fi 6E and 2.5Gb Ethernet built in.

Key features

  • Intel LGA1700 with B760 chipset: supports Intel Core 14th, 13th and 12th Gen, Pentium Gold and Celeron processors.
  • DDR5 up to 192GB: four DIMM slots, dual channel, with Intel XMP support and speeds up to DDR5 7800+ (OC).
  • PCIe 5.0 x16 graphics slot: plus PCIe 4.0 x4 and PCIe 3.0 x1 expansion slots.
  • Three M.2 slots and four SATA ports: two M.2 slots at PCIe 4.0 x4 and one at PCIe 4.0 x2, with SATA RAID 0/1/5/10.
  • Fast networking: Realtek 2.5Gb Ethernet with TUF LANGuard, 2x2 Wi-Fi 6E and Bluetooth 5.3.

Specifications

Model TUF GAMING B760M-PLUS WIFI II
CPU socket Intel LGA1700 (Core 14th/13th/12th Gen, Pentium Gold, Celeron)
Chipset Intel B760
Memory 4 x DIMM, max. 192GB DDR5, dual channel, non-ECC un-buffered, up to 7800+ (OC)
Graphics outputs 1 x DisplayPort (4K@60Hz), 1 x HDMI (4K@60Hz)
Expansion slots 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1
M.2 3 x M.2 (Key M, 2242/2260/2280): 2 x PCIe 4.0 x4, 1 x PCIe 4.0 x2
SATA 4 x SATA 6Gb/s, RAID 0/1/5/10
Ethernet 1 x Realtek 2.5Gb, TUF LANGuard
Wireless 2x2 Wi-Fi 6E (802.11ax, 2.4/5/6GHz), Bluetooth 5.3
Rear USB (8) 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
Front USB headers 1 x USB 10Gbps (Type-C) connector, 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (5 ports)
Audio Realtek 7.1 surround HD audio codec, rear optical S/PDIF out
Form factor Micro-ATX, 24.4 x 24.4 cm

Compatibility

Supports Intel LGA1700 processors: Core 14th, 13th and 12th Gen, Pentium Gold and Celeron. Check ASUS's CPU support list for BIOS requirements. Compatible CPUs we stock include the Intel Core i5-12400 and Intel Core i7-14700F.

Who it's for

Suited to: gamers and PC builders putting together a compact micro-ATX Intel system with DDR5 and fast wireless. Browse more ASUS motherboards and accessories.

Not suited to: AMD processors, builds that need DDR4 memory, or full-size ATX builds that need more expansion slots.

FAQs

Does the TUF Gaming B760M-PLUS WIFI II support DDR4?

No. It supports DDR5 only, up to 192GB across four DIMM slots.

Which Intel CPUs does it support?

Intel Core 14th, 13th and 12th Gen, Pentium Gold and Celeron processors on socket LGA1700.

Does it have built-in Wi-Fi?

Yes. It has 2x2 Wi-Fi 6E with 2.4/5/6GHz support and Bluetooth 5.3.

How many M.2 SSDs can I install?

Three: two at PCIe 4.0 x4 and one at PCIe 4.0 x2.
