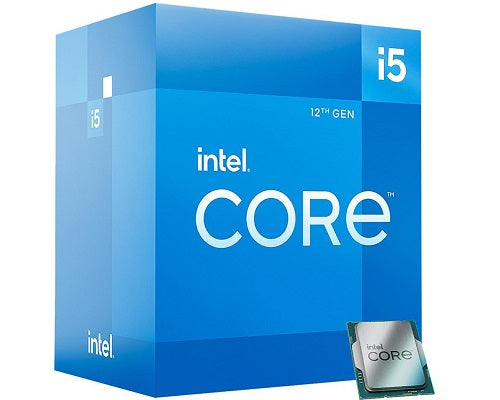

Intel Core i5-12400 Desktop Processor, 6 Cores, LGA1700, BX8071512400

$313.07

The Intel Core i5-12400 is a 12th Gen desktop processor with 6 Performance-cores and 12 threads, boosting to 4.40 GHz from a 2.50 GHz base. It has 18 MB Intel Smart Cache, a 65 W base power rating and built-in Intel UHD Graphics 730, and fits LGA1700 (FCLGA1700) boards.

Key features

  • 6 cores, 12 threads with Intel Hyper-Threading for everyday multitasking.
  • Up to 4.40 GHz with Intel Turbo Boost Technology 2.0.
  • DDR5 or DDR4 support: up to DDR5 4800 MT/s or DDR4 3200 MT/s, 2 channels, up to 128 GB.
  • Integrated Intel UHD Graphics 730 drives up to 4 displays, so you can run without a graphics card.
  • PCIe 5.0 and 4.0 with up to 20 lanes from the processor.

Specifications

Specification Detail
Processor number / boxed ordering code i5-12400 / BX8071512400
Product collection 12th Generation Intel Core i5 (formerly Alder Lake)
Segment Desktop
Lithography Intel 7
Cores / threads 6 Performance-cores, 0 Efficient-cores / 12 threads
P-core base / max turbo frequency 2.50 GHz / 4.40 GHz
Cache 18 MB Intel Smart Cache; 7.5 MB total L2
Processor base / maximum turbo power 65 W / 117 W
Memory Up to DDR5 4800 MT/s or DDR4 3200 MT/s; 2 channels; max 128 GB; 76.8 GB/s
Integrated graphics Intel UHD Graphics 730, 300 MHz base, 1.45 GHz max, 24 execution units
Max resolution HDMI 4096 x 2160 @ 60Hz; DP 7680 x 4320 @ 60Hz; eDP 5120 x 3200 @ 120Hz
Displays supported 4
DirectX / OpenGL 12 / 4.5
PCI Express 5.0 and 4.0; up to 1x16+4 or 2x8+4; 20 lanes max
Socket FCLGA1700
Max operating temperature (TJUNCTION) 100°C
Package size 45.0 x 37.5mm
Instruction set / extensions 64-bit / SSE4.1, SSE4.2, AVX2
Launch date Q1 2022

Compatibility

  • Socket: FCLGA1700 (LGA1700) motherboards. Check your motherboard maker's CPU support list before buying.
  • Memory: DDR5 up to 4800 MT/s or DDR4 up to 3200 MT/s, depending on the motherboard.
  • Virtualisation: Intel VT-x, VT-d and VT-x with EPT supported.

Who it's for

Suited to: office, home and small-business desktop builds and upgrades that need solid 6-core performance and can use the built-in graphics instead of a separate graphics card.

Not suited to: builds that need more cores. Compare the Intel Core i5-13600K or the Intel Core i5-14400 (tray), or browse all Intel products.

FAQs

Does the i5-12400 have integrated graphics?

Yes. It includes Intel UHD Graphics 730, which supports up to 4 displays.

Does it support DDR4 and DDR5 memory?

Yes. Intel lists support for up to DDR5 4800 MT/s and up to DDR4 3200 MT/s, with a maximum of 128 GB across 2 channels. Your motherboard decides which type you use.

Does it have Efficient-cores?

No. Intel lists 6 Performance-cores and 0 Efficient-cores, for 12 threads in total.

What power does it draw?

Intel rates the processor base power at 65 W and maximum turbo power at 117 W.

  • SKU:
    BX8071512400
  • Vendor :Intel
  • Product Type :SKT-1700-12GEN
