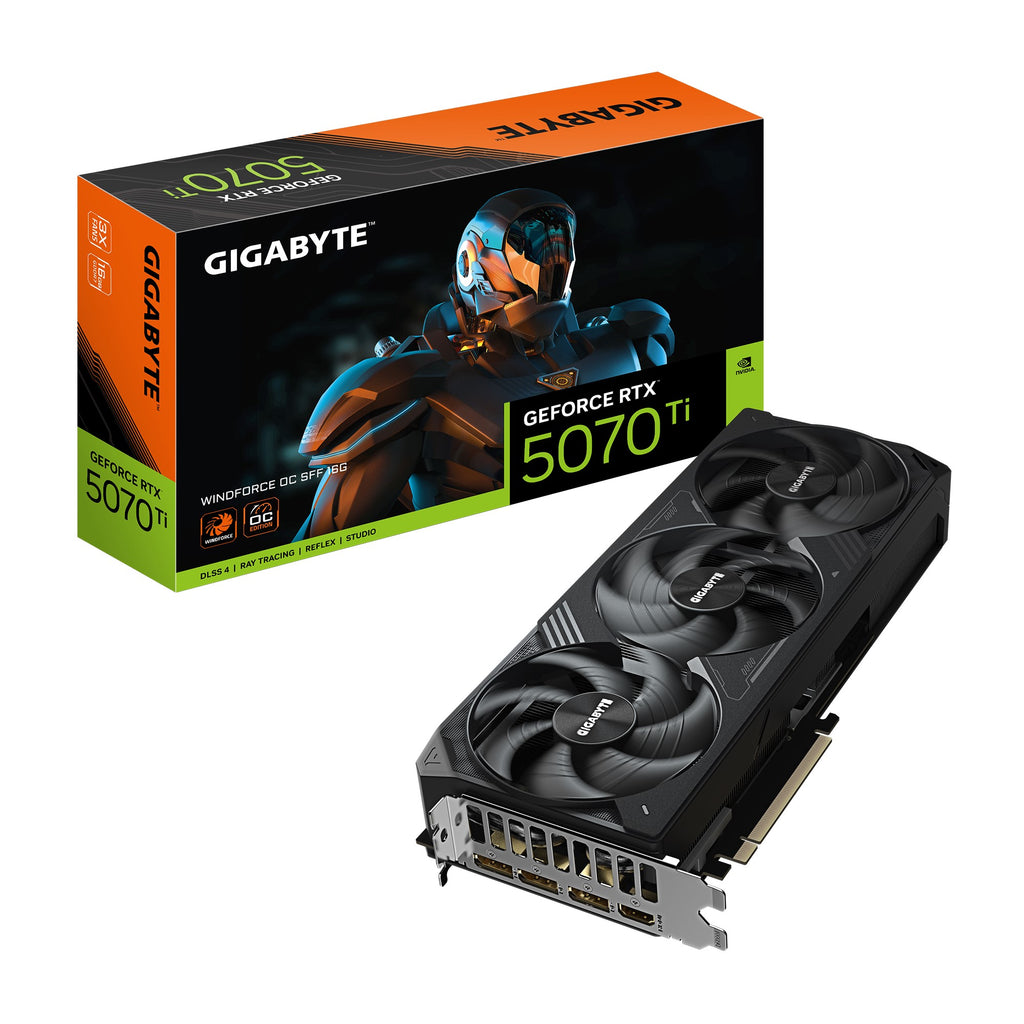

The Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G is a graphics card for desktop gamers and creators, including small form factor builders. It has 16GB of GDDR7 memory, 8960 CUDA cores and a 2497MHz core clock, and Gigabyte recommends a 750W power supply.
| Part number | GV-N507TWF3OC-16GD |
| Graphics processing | GeForce RTX 5070 Ti |
| Core clock | 2497MHz (reference 2452MHz) |
| CUDA cores | 8960 |
| Memory | 16GB GDDR7, 28Gbps, 256-bit |
| Card bus | PCI-E 5.0 |
| Maximum resolution | 7680 x 4320 |
| Multi-view | 4 |
| Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Card size | L304 x W126 x H50mm |
| PCB form | ATX |
| Recommended PSU | 750W |
| Power connector | 16-pin x1 |
| Accessories | VGA manual, 12V-2x6 to 2x PCIe 8-pin adapter, Versatile VGA holder and manual |
This card uses a PCI-E 5.0 slot and a 16-pin power connector, with a 12V-2x6 to 2x PCIe 8-pin adapter included. Gigabyte recommends a 750W power supply.
Suited to: PC builders who want an RTX 5070 Ti with 16GB of memory in a smaller card. Compare it with the Gigabyte RTX 5070 Ti GAMING OC, or browse more Gigabyte PC components.
Not suited to: systems with a power supply below Gigabyte's 750W recommendation, or cases that can't take a 304mm card.
Gigabyte recommends a 750W power supply, with one 16-pin connector.
It supports 4 displays through 3 DisplayPort 2.1b and 1 HDMI 2.1b outputs.
It lets you switch from the default Performance mode to a quieter Silent mode.
It complies with NVIDIA's small form factor specification, but check your case, as it measures 304 x 126 x 50mm.
