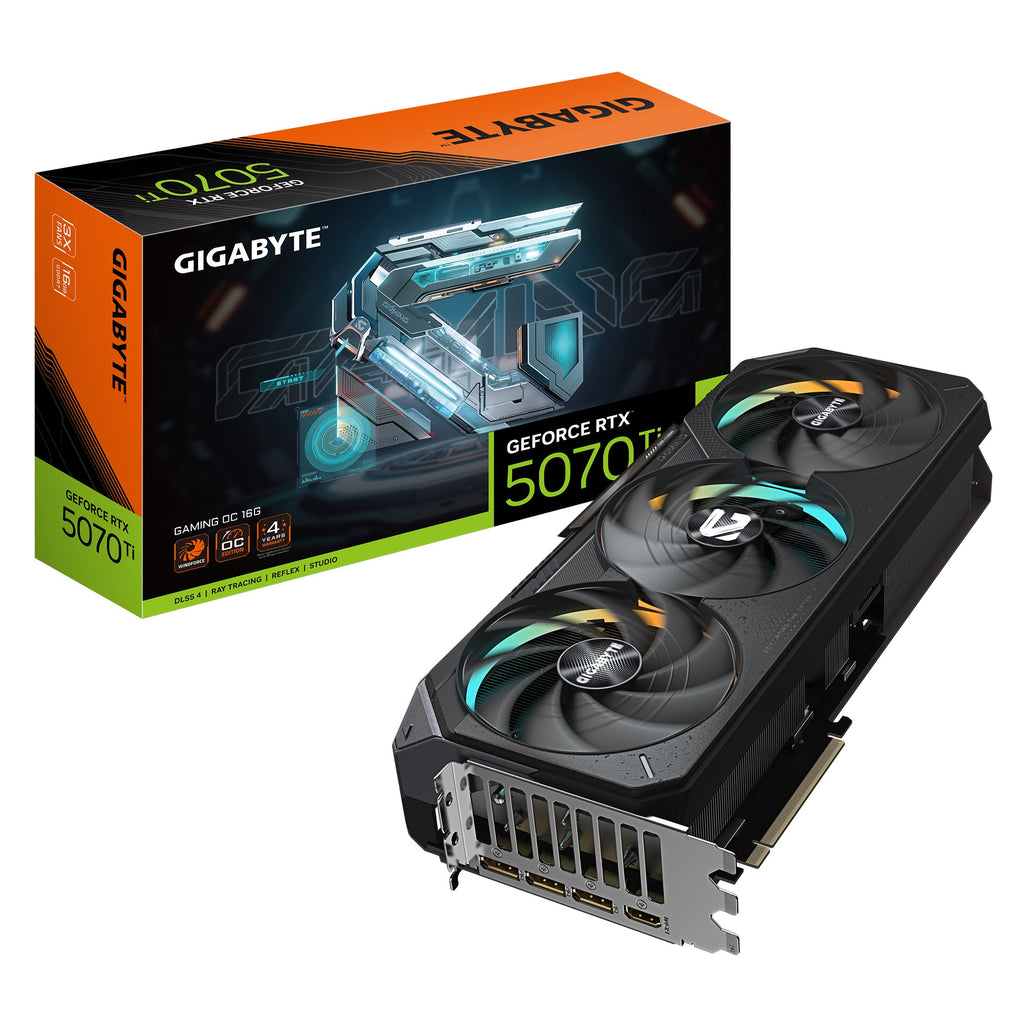

The Gigabyte GeForce RTX 5070 Ti GAMING OC 16G graphics card combines NVIDIA's Blackwell architecture with 16GB of GDDR7 memory for gamers and creators building a full-size desktop. A factory overclock to 2588 MHz, WINDFORCE cooling and dual BIOS give you strong performance with the option of quieter running.
| Manufacturer part number | GV-N507TGAMING OC-16GD |
| Graphics processor | NVIDIA GeForce RTX 5070 Ti |
| Core clock | 2588 MHz (reference: 2452 MHz) |
| CUDA cores | 8960 |
| Memory | 16GB GDDR7, 256-bit, 28 Gbps |
| Card bus | PCI-E 5.0 |
| Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Maximum digital resolution | 7680 x 4320 |
| Multi-view | 4 displays |
| APIs | DirectX 12 API, OpenGL 4.6 |
| Recommended PSU | 750W |
| Power connector | 1 x 16-pin |
| Card size | 342 x 142 x 70 mm (L x W x H) |
| PCB form | ATX |
| In the box | VGA manual, warranty notice, 1 x 12V-2x6 to 3 x PCIe 8-pin adapter, versatile VGA holder, VGA holder manual |
| Warranty | 4 years from Gigabyte (online registration required) |
Suited to: gamers and content creators who want NVIDIA RTX features such as DLSS and ray tracing, in an ATX build with at least 342 mm of graphics card clearance and a 750W power supply.
Not suited to: small cases or systems with a lower-wattage power supply. If space is tight, compare the Gigabyte RTX 5070 Ti EAGLE OC SFF 16G, or browse more Gigabyte graphics cards, motherboards and power supplies.
Gigabyte recommends a 750W power supply. The card uses one 16-pin power connector, and a 12V-2x6 to 3 x PCIe 8-pin adapter is included. A matching option is the Gigabyte 750W GP-UD750GM power supply.
It fits cases with at least 342 mm of graphics card length clearance. Gigabyte lists the card at 342 x 142 x 70 mm, so also check width and slot space before you buy.
You can run up to four displays. It has three DisplayPort 2.1b outputs and one HDMI 2.1b output, with a maximum digital resolution of 7680 x 4320.
Gigabyte lists a 4-year warranty, with online registration required. Register the card on Gigabyte's website after purchase.
