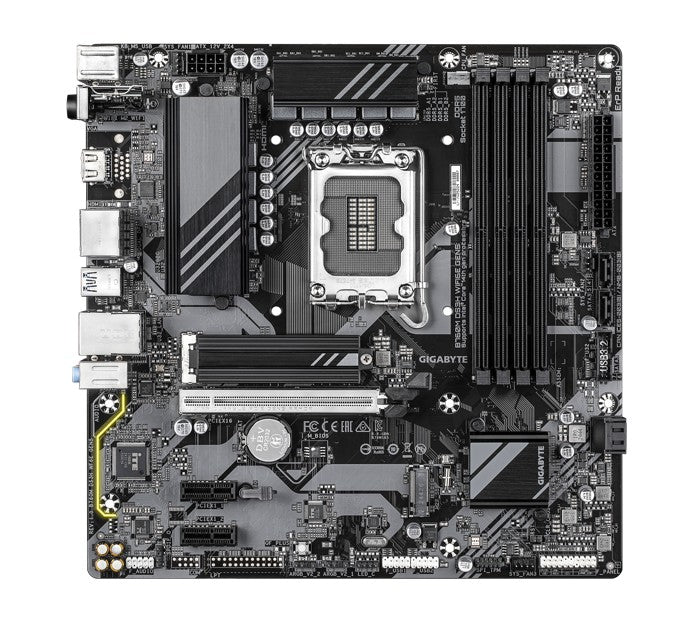

The Gigabyte B760M DS3H WiFi6E Gen5 is a micro-ATX LGA1700 motherboard for gaming and office builds using 12th, 13th and 14th Gen Intel Core processors. It pairs a PCIe 5.0 x16 graphics slot with four DDR5 slots, two PCIe 4.0 M.2 slots, Intel Wi-Fi 6E and 2.5GbE LAN in a compact 24.4 x 24.4cm board.
| Model | Gigabyte B760M DS3H WIFI6E GEN5 |
| Socket / chipset | Intel LGA1700 / Intel B760 Express |
| Supported CPUs | 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors |
| Memory | 4 x DDR5 DIMM, up to 256GB (64GB per DIMM), dual channel; up to DDR5 7600 (O.C.) with 14th/13th Gen Core i9/i7; XMP support |
| Expansion slots | 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 3.0 x1 (chipset) |
| Storage | 2 x M.2 PCIe 4.0 x4/x2, type 2280 (1 CPU, 1 chipset), 4 x SATA 6Gb/s; SATA RAID 0/1/5/10 |
| Onboard graphics outputs | 1 x HDMI (up to 4096x2160 at 60Hz), 2 x DisplayPort (up to 4096x2304 at 60Hz), up to three displays |
| LAN | Realtek 2.5GbE |
| Wireless | Intel Wi-Fi 6E AX210 (2.4/5/6GHz, 160MHz), Bluetooth 5.3 |
| Audio | Realtek HD audio codec, 2/4/5.1/7.1-channel, S/PDIF out header |
| Rear USB | 1 x USB-C (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Internal USB | 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Other rear I/O | PS/2 port, RJ-45, 2 x antenna connectors, 3 x audio jacks |
| Fan headers | 1 x CPU fan, 3 x system fan |
| Lighting headers | 2 x addressable RGB Gen2, 1 x RGB |
| Power connectors | 24-pin ATX, 8-pin ATX 12V |
| BIOS | 128 Mbit flash, AMI UEFI BIOS; Q-Flash, Q-Flash Plus, Smart Backup |
| Operating system | Windows 11 64-bit, Windows 10 64-bit |
| Form factor | Micro ATX, 24.4 x 24.4cm |
This board uses the Intel LGA1700 socket and DDR5 memory only. It supports 12th, 13th and 14th Gen Intel Core processors such as the Intel Core i7-14700. Check Gigabyte's CPU and memory support lists for the BIOS version and modules supported.
Building on AMD instead? See the Gigabyte B850M Gaming X WiFi6E, or browse our Gigabyte collection.
Yes. Gigabyte lists support for 14th, 13th and 12th Gen Intel Core processors on the LGA1700 socket.
No. It has four DDR5 slots, supporting up to 256GB.
No. Both M.2 slots are PCIe 4.0 x4; the PCIe 5.0 support is on the x16 graphics slot.
Yes. It uses an Intel Wi-Fi 6E AX210 module with Bluetooth 5.3.
