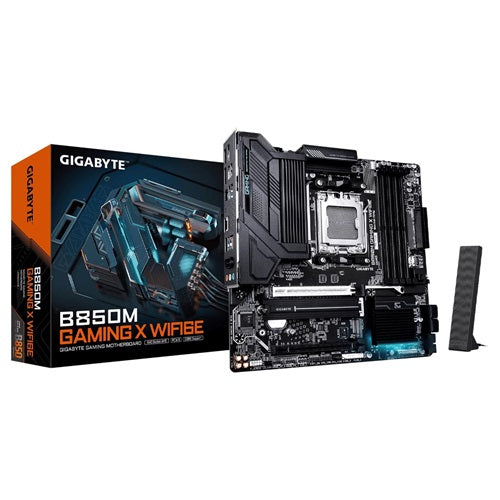

The Gigabyte B850M Gaming X WiFi6E is a micro-ATX AM5 motherboard for compact gaming and home builds using AMD Ryzen 9000, 8000 and 7000 series processors. It combines a PCIe 5.0 graphics slot and PCIe 5.0 M.2 slot with DDR5 support, Wi-Fi 6E and 2.5GbE networking in a 24.4 x 24.4cm board.
| Model | Gigabyte B850M GAMING X WIFI6E (rev. 1.0) |
| Socket / chipset | AMD AM5 / AMD B850 |
| Supported CPUs | AMD Ryzen 9000, 8000 and 7000 series processors |
| Memory | 4 x DDR5 DIMM, up to 256GB (64GB per DIMM), dual channel, up to DDR5 8200 (O.C.); non-ECC unbuffered; AMD EXPO and XMP |
| Expansion slots | 1 x PCIe x16 (CPU; PCIe 5.0 x16 with Ryzen 9000/7000), 1 x PCIe x16 slot running PCIe 3.0 x4 (chipset) |
| Storage | 2 x M.2 (M2A_CPU PCIe 5.0 x4 with Ryzen 9000/7000; M2B_CPU PCIe 4.0 x4), 4 x SATA 6Gb/s |
| RAID | NVMe: RAID 0/1/5/10; SATA: RAID 0/1/10 |
| Onboard graphics outputs | 1 x HDMI (up to 4096x2160 at 60Hz), 2 x DisplayPort (up to 3840x2160 at 144Hz), up to three displays |
| LAN | Realtek 2.5GbE |
| Wireless | Realtek Wi-Fi 6E RTL8852CE (2.4/5/6GHz, 160MHz), Bluetooth 5.3 |
| Audio | Realtek HD audio codec, 2/4/5.1/7.1-channel |
| Rear USB | 1 x USB-C (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal USB | 1 x USB-C header (USB 3.2 Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Other rear I/O | Q-Flash Plus button, PS/2 port, RJ-45, 2 x antenna connectors, 3 x audio jacks |
| Fan headers | CPU fan, CPU fan/pump, system fan, system fan/pump |
| Lighting headers | 3 x addressable RGB Gen2, 1 x RGB |
| Power connectors | 24-pin ATX, 8-pin ATX 12V |
| BIOS | 256 Mbit flash, AMI UEFI BIOS; Q-Flash, Q-Flash Plus, Smart Backup |
| Operating system | Windows 11 64-bit, Windows 10 64-bit |
| Form factor | Micro ATX, 24.4 x 24.4cm |
This board uses the AMD AM5 socket and DDR5 memory only. It supports Ryzen 9000, 8000 and 7000 series processors such as the AMD Ryzen 5 9600X; check Gigabyte's CPU and memory support lists for the BIOS version and modules supported. With Ryzen 8000 series processors, the x16 slot and M.2 slots run at PCIe 4.0.
Need a full-size ATX board instead? Compare the ASUS TUF Gaming B650E-Plus WiFi, or browse our Gigabyte collection.
Yes. Gigabyte lists support for AMD Ryzen 9000, 8000 and 7000 series processors on the AM5 socket.
It has two M.2 slots: one PCIe 5.0 x4 (with Ryzen 9000/7000) and one PCIe 4.0 x4.
Yes. It has Realtek Wi-Fi 6E with Bluetooth 5.3, plus 2.5GbE wired LAN.
It is a micro-ATX board measuring 24.4 x 24.4cm, so it fits micro-ATX and larger ATX cases.
