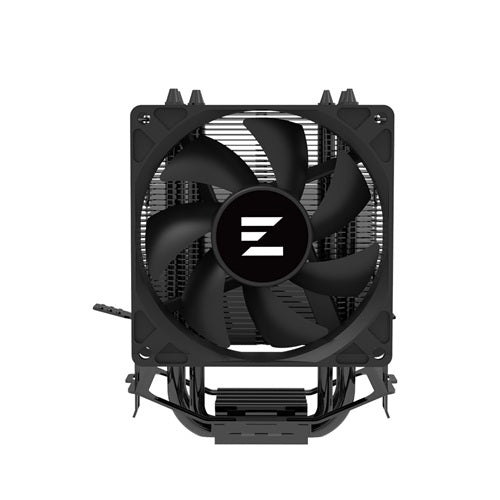

Zalman CNPS4X Black V2 92mm CPU Air Cooler, 3 Heat Pipes, LGA1851/AM5

$24.76

The Zalman CNPS4X Black V2 is a compact 92 mm tower CPU air cooler for Intel LGA1851/1700 and AMD AM5/AM4 builds. Three copper heat pipes, a 150 W Q'max rating and a PWM fan that runs from 800 to 2,000 RPM let it keep a desktop processor cool while staying at a maximum of 29 dB(A).

Key features

  • 3 pure copper heat pipes: move heat from the CPU into the aluminium fin stack for a 150 W Q'max rating.
  • PWM-controlled 92 mm fan: the 4-pin fan ramps between 800 and 2,000 RPM, so it stays quiet at idle and speeds up under load.
  • 29.0 dB(A) maximum noise: a hydro bearing fan keeps noise low for home and office PCs.
  • Modern socket support: fits current Intel LGA1851/1700 and AMD AM5/AM4 platforms.
  • Compact 135 mm height: a 92 mm tower that suits cases with limited CPU cooler clearance.

Specifications

Model Zalman CNPS4X BLACK V2
Cooler type CPU air cooler (tower)
Dimensions 95 (L) x 75 (W) x 135 (H) mm
Weight 420 g
Materials Pure copper, aluminium
Heat pipes 3
Q'max 150 W
Fan size 92 x 92 x 25 mm
Fan bearing Hydro bearing
Fan speed 800–2,000 RPM ±10%
Max. airflow 38.96 CFM ±10%
Max. noise 29.0 dB(A) ±10%
Connector / control 4-pin, PWM control
Rated voltage 12 V DC

Compatibility

Zalman lists the following CPU sockets for the CNPS4X Black V2:

  • Intel: LGA1851, LGA1700
  • AMD: AM5, AM4

Check that your case allows at least 135 mm of CPU cooler height before buying. You can compare it with other coolers in our Zalman range.

Who it's for

  • Suited to: home, office and entry-level gaming PCs on Intel LGA1851/1700 or AMD AM5/AM4 that need a quiet upgrade from a basic cooler, including compact cases.
  • Not suited to: older Intel sockets that Zalman does not list for this model, or high-end CPUs that need more than 150 W of cooling; for those, consider a liquid cooler such as the Zalman ALPHA2 DS A24 AIO liquid CPU cooler.

FAQs

Does the Zalman CNPS4X Black V2 fit AMD AM5?

Yes. Zalman lists AMD AM5 and AM4 support, along with Intel LGA1851 and LGA1700.

How tall is the CNPS4X Black V2?

It is 135 mm tall, with a 95 x 75 mm footprint, and weighs 420 g.

How loud is the CNPS4X Black V2?

Zalman rates the maximum fan noise at 29.0 dB(A) ±10% at up to 2,000 RPM, with PWM control lowering fan speed to 800 RPM at light loads.

Do you stock other Zalman air coolers?

Yes. Ink And Rolls also stocks the Zalman CNPS80G Rev.3; check its specifications for socket and height before choosing.
