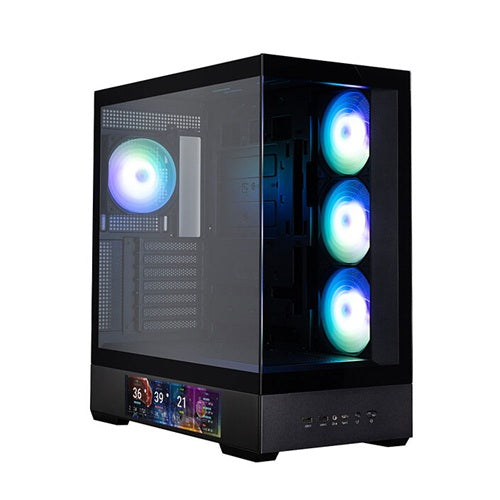

The Zalman P40 DS Black is an ATX mid-tower PC case with a built-in 9.1-inch LCD display and frameless tempered glass panels. It suits gamers and PC builders who want on-screen system monitoring, with room for graphics cards up to 420mm and a 360mm radiator.
| Model | P40 DS BLACK |
| Case form factor | ATX mid-tower |
| Motherboard support | ATX, mATX, Mini-ITX |
| Dimensions | 452 (D) x 235 (W) x 492 (H) mm |
| Weight | 8.7 kg |
| Materials | Steel, plastic, tempered glass |
| Maximum graphics card length | 420mm |
| Maximum CPU cooler height | 165mm |
| Maximum PSU length | 180mm |
| PCI expansion slots | 7 |
| Drive bays | 2 x combo (2.5" or 3.5"), 1 x 2.5" |
| Fan support | Top: 3 x 120mm or 2 x 140mm; Side: 3 x 120mm; Rear: 1 x 120mm; Bottom: 3 x 120mm |
| Fans included | Side: 3 x 120mm; Rear: 1 x 120mm |
| Radiator support | Top: 120, 240, 280 or 360mm; Side: 120, 240 or 360mm; Rear: 120mm |
| I/O ports | Power, power LED, reset, HD audio, 2 x USB 3.0, 1 x USB Type-C |
Suited to: ATX, mATX or Mini-ITX builds with a long graphics card, a CPU cooler up to 165mm or a radiator up to 360mm, where a live system display is wanted.
Not suited to: compact builds, as the case measures 452 x 235 x 492 mm and weighs 8.7 kg. For a smaller option, see the Zalman M2 Mini Silver Mini-ITX case. This case is also listed in a white version, and you can browse more cases and cooling in our Zalman range.
Yes, it has a built-in 9.1-inch LCD display. It shows system monitoring and customisable widgets, and the software tracks CPU, GPU, RAM, storage and fan speed.
Four 120mm fans are included: three on the side and one at the rear. They are ARGB fans and come with an ARGB controller.
It supports radiators up to 360mm at the top or side. The top also takes 120, 240 or 280mm, the side 120 or 240mm, and the rear 120mm.
Yes, Zalman lists support for reverse-layout motherboards with connectors on the underside, along with 34mm of cable management space.
