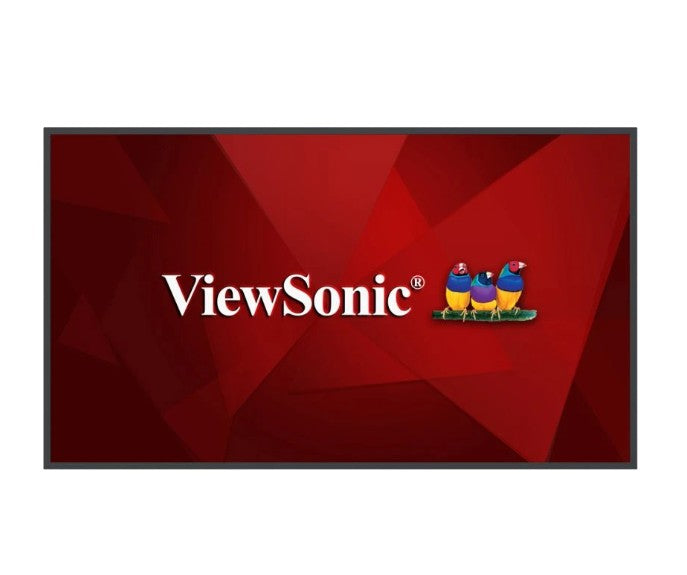

ViewSonic CN7501-1C 75" 4K UHD Commercial Presentation & Signage Display
The ViewSonic CN7501-1C is a 75-inch 4K Ultra HD (3840 x 2160) commercial presentation display built to run continuously in offices, boardrooms, retail spaces, and educational settings. It comes with a signage player already built in, so it can loop and schedule content on its own without a separate PC or media box.
Screen Quality & Orientation
- Native resolution 3840 x 2160 (4K UHD) on a 75-inch panel (visible screen area 74.5" diagonal)
- 520 nits brightness and a 5000:1 contrast ratio for clear images under normal office and showroom lighting
- 178°/178° viewing angles with an anti-glare, 3H-hardness surface treatment
- Displays in both landscape and portrait orientation
Built for 24/7 Operation
- Rated for continuous 7/24 (24 hours a day, 7 days a week) operation
- 50,000-hour backlight life
- Power draw of 218W while on, dropping under 0.5W in standby
Built-In Signage Player & Connectivity
- Runs on Android 14 with a quad-core processor, 4GB RAM and 32GB storage — enough to schedule and play signage content directly on the display
- Wireless screen casting from compatible devices via AirPlay, Miracast, and Chromecast
- One-cable connection over USB-C (DP1.2, 65W power delivery) for laptops that support video, power, and data on a single lead
- 2x HDMI 2.1 (HDCP 2.2) inputs, 2x USB-A 2.0, 1x RJ45 LAN, and RS-232 for control/automation systems
Mounting & What's in the Box
- VESA 500 x 500mm wall mount pattern
- Box contents: wall mount bracket and screws, remote control with batteries, power cable, RS-232 adapter, and a quick start guide
- Net weight 27.7kg; physical dimensions 1679 x 957.1 x 68.8mm — check wall space and arrange lifting help before installation
Why This Display
This is part of ViewSonic's CN Series of presentation displays, built specifically for always-on commercial use rather than adapted from a consumer TV. If you need a large-format screen that stays on all day, plays scheduled content without extra hardware, and still lets staff or visitors cast a laptop or phone to it in seconds, the CN7501-1C covers all three without compromise.
Frequently Asked Questions
What is the ViewSonic CN7501-1C used for?
It's a 75" commercial presentation and signage display designed for continuous use in offices, boardrooms, retail spaces, and educational settings. Unlike a consumer TV, it's built with a signage player and hardware rated for all-day operation.
Can the CN7501-1C run 24 hours a day without damaging the screen?
Yes, it's rated for continuous 7/24 operation and has a 50,000-hour backlight life. Standby power draw is under 0.5W when not in use, and it draws 218W while running.
Does it support portrait (vertical) as well as landscape orientation?
Yes, the display can be mounted and used in both landscape and portrait orientation. This makes it suitable for both wide presentation walls and narrower vertical signage placements.
Do I need a separate media player or PC to run signage content?
No, it has a built-in Android 14 signage player with a quad-core processor, 4GB RAM, and 32GB of storage, so it can loop and schedule content on its own. You can still connect an external PC or player through its HDMI or USB-C inputs if you prefer.
Can I cast my laptop or phone to the display wirelessly?
Yes, it supports wireless casting via AirPlay, Miracast, and Chromecast, so compatible Apple, Windows, and Android/Chromecast-enabled devices can connect without a cable.
What does the USB-C port do, and can I power my laptop through it?
The single USB-C port carries video (DP1.2), data, and up to 65W power delivery, so a supported laptop can send its screen to the display and charge over the same cable.
What size wall mount does this display need, and is a bracket included?
It uses a VESA 500 x 500mm mounting pattern, and a wall mount bracket with screws is included in the box along with the remote, power cable, RS-232 adapter, and quick start guide.
What's the difference between the CN7501-1C and the CN6501-1C?
They're both part of ViewSonic's CN Series with the same core feature set (4K resolution, 24/7 playback, USB-C, built-in signage player). The main difference is screen size: 75" on the CN7501-1C versus 65" on the CN6501-1C.
