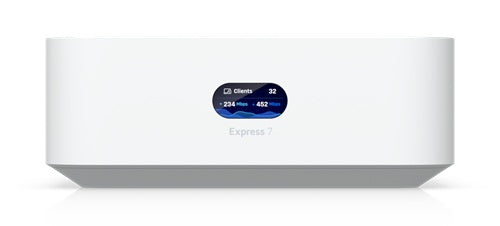

Ubiquiti UniFi Express 7 UX7 WiFi 7 Cloud Gateway with 10G WAN
The Ubiquiti UniFi Express 7 (UX7) is a compact cloud gateway with built-in WiFi 7, including 6 GHz support, and a 10 GbE WAN port. It suits homes and small offices that want a router, firewall and WiFi in one small box, managed through UniFi Network, with coverage up to 160 m² and room to add more UniFi devices later.
Key features
- WiFi 7 tri-band: 2 x 2 MU-MIMO on 6 GHz, 5 GHz and 2.4 GHz, with up to 5.7 Gbps on 6 GHz.
- 10 GbE WAN plus 2.5 GbE LAN: ready for multi-gigabit internet plans and fast wired connections.
- Full UniFi gateway: manages 30+ UniFi devices and 300+ connected clients, with 2.3 Gbps IDS/IPS throughput.
- Built-in security and VPN: zone-based and Layer 7 firewall, content filtering, ad blocking, WireGuard, OpenVPN, IPsec, Teleport and Site Magic SD-WAN.
- Super-compact and mesh-scalable: 117 x 117 x 42.5mm desktop unit with a 0.96" status display, powered by USB-C.
Specifications
| Brand | Ubiquiti |
| Model | UniFi Express 7 (UX7) |
| WiFi standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput | 6 GHz 5.7 Gbps, 5 GHz 4.3 Gbps, 2.4 GHz 688 Mbps |
| MIMO | 2 x 2 (DL/UL MU-MIMO) on each band |
| Coverage area | 160 m² (1,750 ft²) |
| Ports | 1 x 10 GbE RJ45 (WAN), 1 x 2.5 GbE RJ45 |
| IDS/IPS throughput | 2.3 Gbps |
| Managed UniFi devices | 30+ |
| Connected users | 300+ |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Processor | Quad-core ARM Cortex-A53, 1.5 GHz |
| Memory | 3 GB |
| Display | 0.96" status display |
| Power | USB-C (5V DC/5A), adapter included; 22W max. |
| Dimensions | 117 x 117 x 42.5mm |
| Weight | 443g |
| Enclosure | Polycarbonate |
| Operating temperature | -10 to 40°C |
| Software | UniFi Network 9.0.108 or later |
Who it's for
Suited to: homes, home offices and small businesses that want a single compact device for routing, security and WiFi 7, with UniFi management.
Not suited to: sites that need many wired ports from the gateway itself (it has two), or rack-mount installations. For larger spaces, add UniFi access points such as the Ubiquiti U7 Pro XG WiFi 7 access point.
FAQs
Does the UniFi Express 7 support 6 GHz WiFi?
Yes. It supports WiFi 7 and WiFi 6E on the 6 GHz band, plus 5 GHz and 2.4 GHz.
How many devices can the UX7 handle?
Ubiquiti rates it for 300+ simultaneous users and 30+ managed UniFi devices.
What internet speeds does it support?
Its WAN port is 10 GbE, and Ubiquiti lists IDS/IPS throughput of 2.3 Gbps.
How is it powered?
It is powered by USB-C (5V DC/5A), and the adapter is included.
