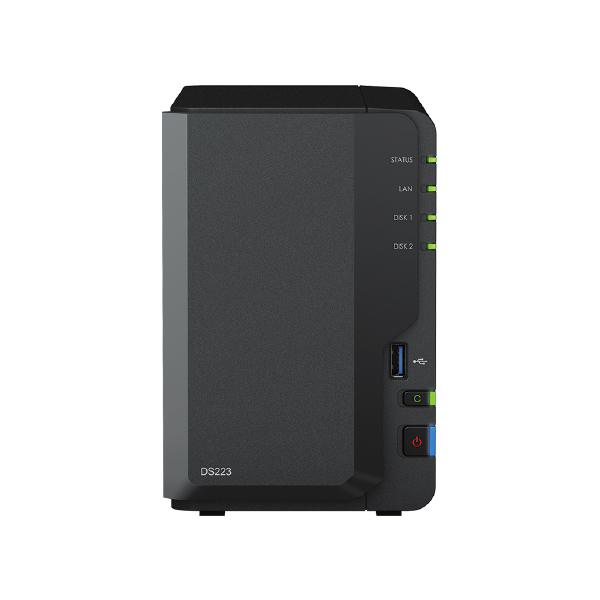

Synology DiskStation DS223 2-Bay Diskless NAS, 2GB RAM, 1GbE
The Synology DiskStation DS223 is a compact 2-bay NAS for storing, backing up and sharing files across your home or office network. It runs Synology DiskStation Manager (DSM) on a 1.7 GHz quad-core Realtek RTD1619B with 2 GB DDR4 memory, and connects over 1GbE. Drives are sold separately.
Key features
- 2 drive bays for 3.5" SATA HDDs or 2.5" SATA SSDs, with hot-swappable drives.
- Quad-core 64-bit CPU (Realtek RTD1619B, 1.7 GHz) with a hardware encryption engine.
- 3 x USB 3.2 Gen 1 ports with USB Copy for quick transfers from external drives.
- Quiet and efficient: 14.6 dB(A) noise level and 4.08 W in HDD hibernation.
- Compact desktop size: 165 x 108 x 232.7mm and 1.28kg.
Specifications
| Specification | Detail |
|---|---|
| Model | Synology DiskStation DS223 |
| CPU | Realtek RTD1619B, 4 cores / 4 threads, 64-bit, 1.7 GHz |
| Memory | 2 GB DDR4 non-ECC |
| Drive bays | 2 x 3.5" SATA HDD or 2.5" SATA SSD (drives not included) |
| LAN | 1 x RJ-45 1GbE (MTU limit 1500) |
| USB | 3 x USB 3.2 Gen 1, USB Copy |
| System fan | 92 x 92mm x 1; Full-Speed, Cool and Quiet modes |
| Noise level | 14.6 dB(A) |
| Power supply | 60 W adapter, 100V to 240V AC, 50/60 Hz |
| Power consumption | 17.343 W (access); 4.08 W (HDD hibernation) |
| Size (H x W x D) | 165 x 108 x 232.7mm |
| Weight | 1.28kg |
| Operating temperature / humidity | 0°C to 40°C / 8% to 80% RH |
| Other | Scheduled power on/off, Wake on LAN/WAN, power recovery, adjustable front LED brightness |
| In the box | Main unit, accessory pack, AC power adapter, AC power cord, RJ-45 LAN cable, quick installation guide |
| Warranty (Synology) | 2-year hardware warranty |
Compatibility
- Drives: 3.5" SATA HDD or 2.5" SATA SSD. Check Synology's supported drive list before buying drives.
- Network: 1GbE RJ-45 (LAN cable included).
- External storage: USB 3.2 Gen 1 devices via the 3 USB ports.
Who it's for
Suited to: homes and small offices that want a central place to store, back up and share files, with two drives for capacity or redundancy.
Not suited to: setups that need more than 2 bays or faster than 1GbE networking. See the full Synology range, and browse Seagate drives to fill the bays.
FAQs
Does the DS223 come with hard drives?
No. It is diskless. Add up to 2 x 3.5" SATA HDDs or 2.5" SATA SSDs.
How much memory does it have?
2 GB DDR4 non-ECC, as listed by Synology.
How noisy is it?
Synology measured 14.6 dB(A) with the system idle and fitted with Synology SATA SSDs.
What warranty does Synology provide?
Synology lists a 2-year hardware warranty, starting from the purchase date on your receipt.
