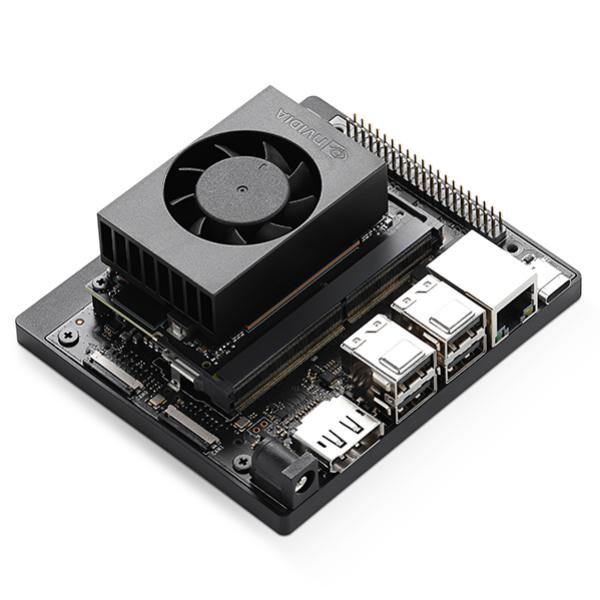

The NVIDIA Jetson Orin Nano 8GB Developer Kit is a compact edge AI computer for developers building robots, smart cameras and vision systems. It delivers up to 40 TOPS of AI performance in a 100 x 79 x 21 mm package, and comes with the 8 GB module, carrier board, cooling and power supply.
| Model | Jetson Orin Nano Developer Kit |
| AI performance | Up to 40 INT8 TOPS (sparse), 20 INT8 TOPS (dense) |
| GPU | NVIDIA Ampere, 1024 CUDA cores, 32 Tensor cores, 635 MHz |
| CPU | 6-core Arm Cortex-A78AE v8.2 64-bit, 1.5 GHz, 1.5 MB L2 + 4 MB L3 |
| Memory | 8 GB 128-bit LPDDR5, 68 GB/s |
| Storage | microSD slot (UHS-1 up to SDR104), 2 x M.2 Key M NVMe sockets |
| PCIe | M.2 Key M x4 PCIe Gen3, M.2 Key M x2 PCIe Gen3, M.2 Key E PCIe x1 |
| USB | 4 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C (debug and device mode) |
| Networking | 1 x GbE, 802.11ac/abgn WLAN + BT module included |
| Display | DisplayPort 1.2 (+MST) |
| Camera | 2 x MIPI CSI-2 22-pin connectors |
| Other I/O | 40-pin expansion header (UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack |
| Module power | 7 W to 15 W |
| Dimensions | 100 x 79 x 21 mm (height includes feet, carrier board, module and thermal solution) |
| In the box | Jetson Orin Nano 8 GB module, reference carrier board, heatsink and fan, 19 V DC power supply, M.2 Key E wireless module |
Suited to: developers, students and engineers prototyping edge AI, robotics and vision projects. See more in the NVIDIA range.
Not suited to: anyone who needs more memory or AI performance. For that, compare the Palit Pandora Jetson Orin NX Super 16GB.
It delivers up to 40 INT8 TOPS (sparse) and 20 INT8 TOPS (dense). A JetPack software upgrade with MAXN mode raises that to 67 and 33 TOPS.
Yes, NVIDIA says existing Jetson Orin Nano Developer Kits get the boost through a software update to JetPack 6.1, with no hardware changes.
You can use a microSD card or an NVMe SSD in the M.2 Key M sockets. An SSD is not listed in the box.
Yes, NVIDIA includes a 19 V DC power supply and an M.2 Key E wireless module in the kit.
