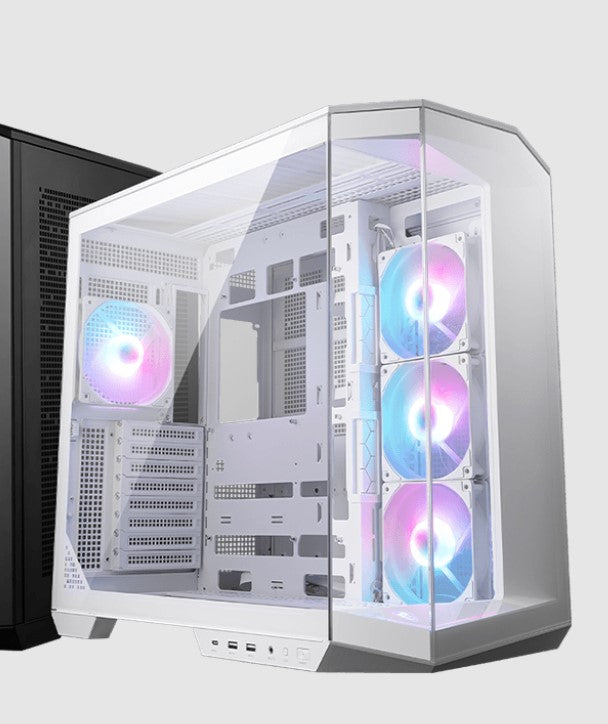

The MSI MAG PANO 100R PZ White is an ATX mid tower case for PC builders who want to show off their components and keep cables out of sight. A 270-degree panoramic glass design, four pre-installed ARGB fans and support for back-connect motherboards make it a strong base for a clean, bright gaming build.
| Model | MSI MAG PANO 100R PZ White |
| Form factor | Mid tower |
| Motherboard support | Regular: ATX, Micro-ATX, Mini-ITX. Back-connect: ATX, Micro-ATX |
| Front I/O | 1 x USB 20Gbps Type-C, 2 x USB 5Gbps Type-A, 1 x audio-out/mic-in, LED switch button, power button |
| Drive bays | 3 x 2.5", 2 x 2.5"/3.5" combo |
| Expansion slots | 8 |
| Max GPU length | 380 mm |
| Max CPU cooler height | 166 mm |
| Power supply | ATX, up to 200 mm long |
| Pre-installed fans | Side: 3 x 120 mm ARGB reverse-blade. Rear: 1 x 120 mm ARGB |
| Fan support | Top: 3 x 120/140 mm. Rear: 1 x 120 mm. Side: 3 x 120 mm or 2 x 140 mm. Bottom: 3 x 120 mm, 2 x 140 mm or 2 x 160 mm |
| Radiator support | Top, side and bottom: 120/240/360 mm. Rear: 120 mm |
| Side panel | 4 mm tempered glass, 270-degree panoramic design |
| Dimensions (D x W x H) | 518.7 x 290 x 482 mm |
| Colour | White |
Suited to: gamers and PC builders planning a showcase build with RGB lighting, builders using back-connect motherboards for hidden cables, and anyone running a large graphics card or 360 mm liquid cooler. Browse more MSI cases, motherboards and components, or add the MSI MPG EZ120 ARGB 3-fan pack.
Not suited to: small-form-factor builds, as this is a 518.7 mm deep mid tower, or users who need front fan or front radiator mounting, which this case does not support. For another MSI panoramic case, compare the MSI MAG PANO 130R PZ White.
It is an ATX mid tower. It supports regular ATX, Micro-ATX and Mini-ITX motherboards, plus back-connect ATX and Micro-ATX motherboards.
Four: three 120 mm ARGB reverse-blade fans on the side and one 120 mm ARGB fan at the rear.
The case fits graphics cards up to 380 mm long and CPU coolers up to 166 mm tall.
Yes. A 360 mm radiator can be mounted at the top, side or bottom.
