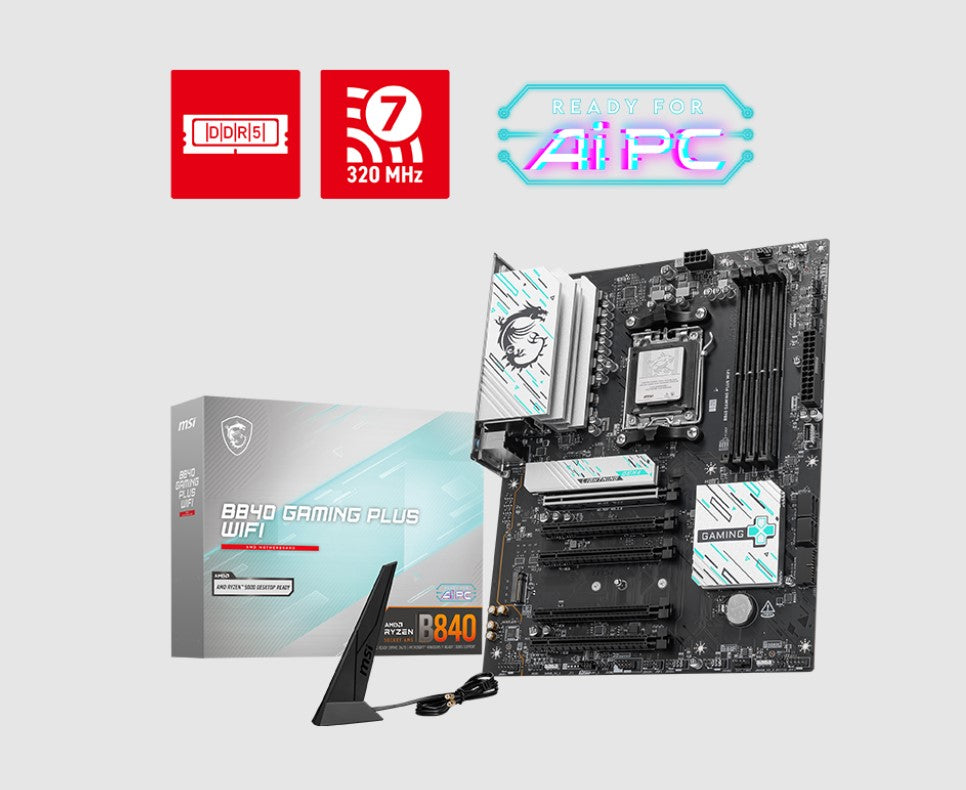

MSI B840 GAMING PLUS WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7

$346.49

The MSI B840 Gaming Plus WiFi is an ATX AM5 motherboard for AMD Ryzen 9000, 8000 and 7000 series desktop processors. It suits gaming, home and office builds that need up to 256GB of DDR5 memory, two PCIe 4.0 M.2 SSD slots, built-in Wi-Fi 7 and 2.5G wired networking on one board.

Key features

  • Wi-Fi 7 and Bluetooth 5.4 built in: the pre-installed module covers 2.4, 5 and 6GHz bands at up to 5.8Gbps, so you don't need a separate wireless card.
  • 2.5G LAN: a Realtek 8125BG port gives faster wired transfers than standard gigabit Ethernet.
  • Room to grow on DDR5: four DIMM slots take up to 256GB in dual channel, with AMD EXPO memory profile support.
  • Fast NVMe storage: two M.2 PCIe 4.0 x4 slots wired to the CPU, plus four SATA 6Gb/s ports for extra drives.
  • Easier building and fault-finding: pre-installed I/O shield, EZ M.2 Shield Frozr II, EZ PCIe Clip II, four EZ Debug LEDs and rear Clear CMOS and Flash BIOS buttons.

Specifications

Specification Detail
Model B840 GAMING PLUS WIFI
Chipset AMD B840
Socket AM5
Supported CPUs AMD Ryzen 9000, 8000 and 7000 series desktop processors
Memory 4x DDR5 UDIMM, dual channel, non-ECC, up to 256GB; up to DDR5 8000 MT/s (OC); AMD EXPO support
Expansion slots 5x PCIe x16 physical slots: 1x PCIe 4.0 x16 from the CPU (lane width depends on processor); 4x PCIe 3.0 from the chipset (x1, x1, x4, x1)
M.2 2x M.2 PCIe 4.0 x4
SATA 4x SATA 6Gb/s
RAID SATA: RAID 0, 1, 10; M.2 NVMe: RAID 0, 1
Onboard video output 1x HDMI 2.1, up to 4K 60Hz (requires a processor with integrated graphics)
Rear USB 4x USB 2.0 Type-A, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
Front USB headers 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
LAN Realtek 8125BG 2.5G
Wireless Wi-Fi 7 (2.4/5/6GHz, up to 5.8Gbps, 320MHz), Bluetooth 5.4; 6GHz subject to local regulations; full support requires Windows 11 24H2
Audio Realtek ALC897, 7.1-channel HD audio
Fan headers 1x CPU fan, 1x pump/system fan, 4x system fan, 1x ARGB + fan
Lighting headers 2x addressable RGB, 1x RGB
Other headers TPM 2.0, COM port, chassis intrusion, front audio, tuning controller
Debug 4x EZ Debug LEDs
Form factor ATX, 243.84 x 304.8 mm
Operating system Windows 11 64-bit

Compatibility

MSI lists support for AMD Ryzen 9000, 8000 and 7000 series desktop processors on the AM5 socket. You can browse AM5 Ryzen processors in our AMD collection, such as the AMD Ryzen 7 9700X. Memory must be DDR5 UDIMM (non-ECC); MSI recommends checking its memory compatibility list before buying RAM, as supported speeds vary by processor and module.

Who it's for

Suited to: full-size ATX AM5 builds for gaming, home or office use that want Wi-Fi 7, 2.5G LAN and two fast NVMe SSDs without add-in cards.

Not suited to: Micro-ATX or Mini-ITX cases, builds that need ECC memory, or setups that need DisplayPort or USB4 from the motherboard (neither is listed). For another MSI AM5 option, see the MSI B850M Gaming Plus WiFi 6E or the full MSI range.

FAQs

Does the MSI B840 Gaming Plus WiFi support Ryzen 9000 processors?

Yes. MSI lists support for AMD Ryzen 9000, 8000 and 7000 series desktop processors on its AM5 socket.

How many M.2 SSDs can I install?

Two. The board has two M.2 PCIe 4.0 x4 slots, plus four SATA 6Gb/s ports for 2.5-inch drives or hard drives.

Does it have DisplayPort?

No. The only onboard video output is one HDMI 2.1 port (up to 4K 60Hz), and it works only with a processor that has integrated graphics. Use a graphics card for DisplayPort outputs.

Do I need to add a Wi-Fi card?

No. A Wi-Fi 7 and Bluetooth 5.4 module comes pre-installed. MSI notes that full Wi-Fi 7 and Bluetooth 5.4 support needs Windows 11 24H2, and 6GHz use depends on local regulations.

  • SKU:
    B840 GAMING PLUS WIFI
  • Vendor :MSI
  • Product Type :Motherboards
