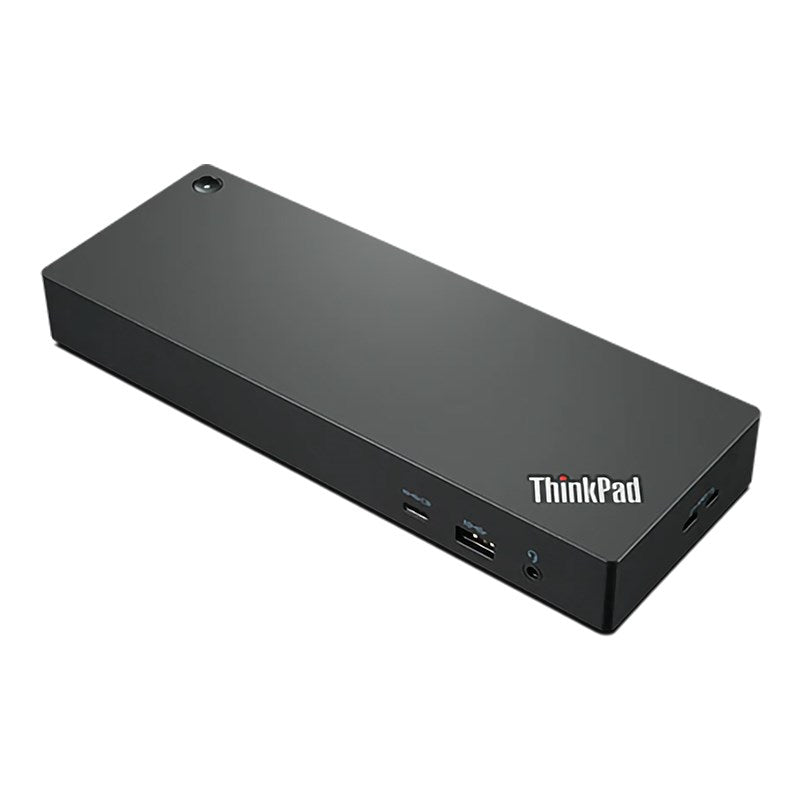

Lenovo ThinkPad Universal Thunderbolt 4 Dock, 100W – 40B00135AU
The Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135AU) connects a laptop to up to four 4K monitors, wired network and USB devices through one Thunderbolt 4 cable, while charging it at up to 100W. It suits ThinkPad and other Thunderbolt or USB-C laptop users who want a single-cable desk setup.
Key features
- One cable to your laptop: a 0.7m Thunderbolt 4 cable carries display, data, network and up to 100W charging.
- Multi-monitor support: 2 × DisplayPort 1.4 and 1 × HDMI 2.1, with Lenovo quoting support for one 8K @ 30Hz display or up to four 4K @ 60Hz displays.
- Plenty of ports: 4 × USB 3.1 Gen 2 (one always-on), 1 × USB-C, 1 × Thunderbolt 4 downstream, Gigabit Ethernet and a 3.5mm combo audio jack.
- Built for managed fleets: MAC address pass-through, PXE boot, Wake-on-LAN and Dock Manager firmware updates that install without interrupting users.
- 3-year warranty: Lenovo lists a 3-year CRU warranty.
Specifications
| Brand | Lenovo |
| Model | ThinkPad Universal Thunderbolt 4 Dock (type 40B0) |
| Part number | 40B00135AU |
| Host connection | Thunderbolt 4, 0.7m cable |
| Video outputs | 2 × DisplayPort 1.4, 1 × HDMI 2.1 |
| USB | 4 × USB 3.1 Gen 2 (1 always-on), 1 × USB-C, 1 × Thunderbolt 4 downstream |
| Network | 1 × RJ45 Gigabit Ethernet (PXE boot, Wake-on-LAN, MAC address pass-through) |
| Audio | 1 × 3.5mm combo audio jack |
| Laptop charging | Up to 100W |
| Power adapter | ThinkPad 135W slim tip |
| Security | 2 × Kensington lock slots (MicroSaver and NanoSaver) |
| Dimensions | 220 × 80 × 30mm |
| Weight | From 525g |
| Colour | Black |
| Operating temperature | 0 to 40 °C |
| Supported OS | Windows 10 and above |
| Warranty | 3 years, CRU |
What's in the box
- ThinkPad Universal Thunderbolt 4 Dock
- ThinkPad 135W power adapter and power cord
- Thunderbolt 4 passive cable (0.7m)
- Warranty and setup poster
Compatibility
Lenovo says the dock works with notebooks that support Thunderbolt or USB-C Alt Mode through their Type-C port, including select ThinkPad, Lenovo and non-Lenovo systems running Windows 10 or later. MAC address pass-through, Wake-on-LAN and the mirrored power button are supported on most ThinkPad notebooks but may not work on other brands, and Intel AMT is supported only on select 11th Gen Intel Core vPro PCs.
Who it's for
- Suited to: offices and hybrid workers with Thunderbolt 4, Thunderbolt 3, USB4 or USB-C Windows laptops who want multiple monitors and wired networking from one cable.
- Not suited to: laptops whose USB-C port doesn't support Thunderbolt or DisplayPort Alt Mode, or anyone who only needs a simpler USB-C hub; the ThinkPad USB-C Dock Gen 2 is an alternative.
FAQs
How many monitors can the ThinkPad Universal Thunderbolt 4 Dock run?
Lenovo quotes support for up to four 4K displays at 60Hz, or one 8K display at 30Hz, depending on your laptop.
Does it charge my laptop?
Yes, it delivers up to 100W to the laptop and is powered by the included 135W adapter.
Does it work with non-Lenovo laptops?
Yes, Lenovo lists select non-Lenovo systems with Thunderbolt or USB-C Alt Mode, though MAC pass-through, Wake-on-LAN and the mirrored power button may not be available on them.
What warranty does it have?
Lenovo lists a 3-year CRU warranty. Browse more Lenovo laptops and accessories.
