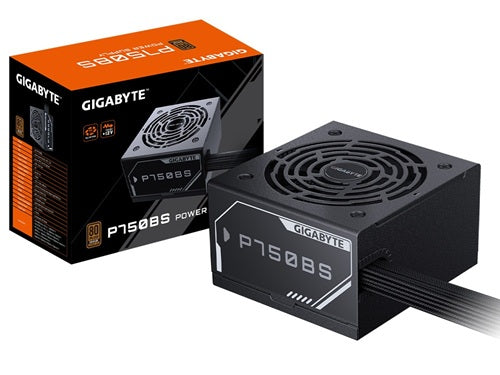

Gigabyte P750BS 750W 80 PLUS Bronze ATX Power Supply GP-P750BS

$87.83

The Gigabyte P750BS (GP-P750BS) is a 750W ATX power supply for desktop gaming and work PCs that need dependable, efficient power. It is 80 PLUS Bronze certified (230V EU) with up to 88% efficiency at typical load, and uses a quiet 120 mm fluid dynamic bearing fan.

Key features

  • 80 PLUS Bronze efficiency: 88% efficiency at typical (50%) load means less wasted power, less heat and less fan noise.
  • Single +12V rail: delivers the full output on one rail for stable power, simple cabling and broad hardware compatibility.
  • 120 mm FDB fan: the fluid dynamic bearing fan runs quieter than a conventional sleeve fan, lasts over twice as long, and adjusts its speed to load and temperature.
  • Six protection circuits: OVP, OPP, SCP, UVP, OCP and OTP protect your components from faults.
  • Four PCIe 6+2 pin connectors: enough to run graphics cards needing multiple 8-pin power connections.

Specifications

Model GP-P750BS
Form factor Intel ATX 12V
Output capacity 750W
80 PLUS rating Bronze (230V EU)
Efficiency 88% at typical load
+12V rail Single
PFC Active PFC (>0.9 typical)
Input voltage 200–240 Vac
Input current 6 A
Input frequency 50–60 Hz
Fan 120 mm fluid dynamic bearing (FDB)
Protections OVP / OPP / SCP / UVP / OCP / OTP
Power good signal 100–150 ms
Hold-up time >16 ms
MTBF >100,000 hours
Cables Embossed, soft-textured, all black
Dimensions 150 x 140 x 86 mm
Warranty 3 years (Gigabyte; may vary by region)

Connectors

ATX/MB 20+4 pin 1 (600 mm)
CPU/EPS 4+4 pin 2 (600 mm + 150 mm)
PCIe 6+2 pin 4 (2 cables, 500 mm + 150 mm)
SATA 7 (one 4-connector cable, plus one cable with 3 SATA and 1 peripheral connector)
Peripheral (Molex) 1

Who it's for

Suited to: mid-range gaming and productivity PCs built in standard ATX cases, where a 750W budget covers the CPU, graphics card and drives.

Not suited to: builders who specifically want modular cables (Gigabyte does not list the P750BS as modular), small-form-factor cases that need an SFX unit, or high-end systems needing more than 750W. For more headroom, compare the Corsair RM1000x 1000W; for lighter builds, the MSI MAG A650BNL 650W. Browse more Gigabyte PC components.

FAQs

Is the Gigabyte P750BS modular?

Gigabyte's specifications do not list the P750BS as modular or semi-modular, so if detachable cables matter to you, choose a model that is listed as modular.

How many PCIe connectors does the P750BS have?

It has four PCIe 6+2 pin connectors, spread across two cables.

What efficiency rating does it have?

It is 80 PLUS Bronze certified (230V EU), with 88% efficiency at typical load.

What size is the P750BS?

It measures 150 x 140 x 86 mm in the Intel ATX 12V form factor.
