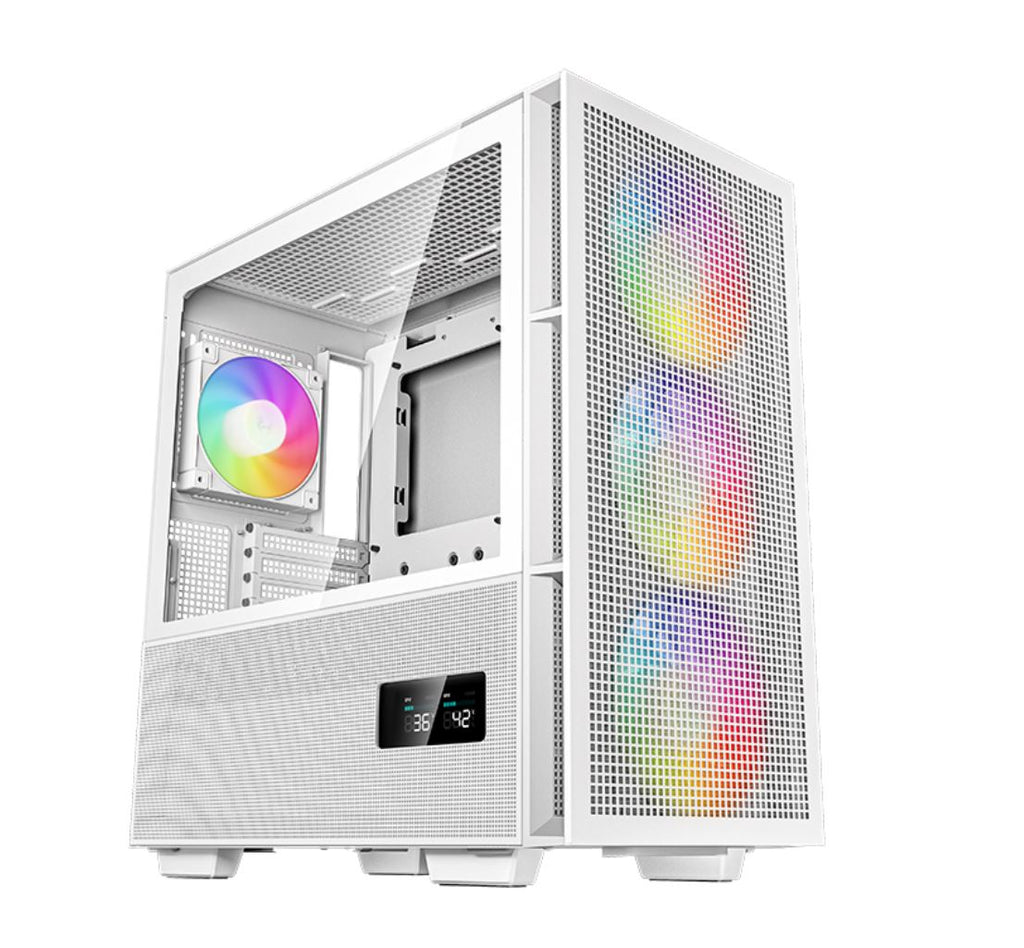

DeepCool CH560 DIGITAL White Mid-Tower ATX Case with Status Screen

$187.29

The DeepCool CH560 DIGITAL White is a high-airflow mid-tower case with a built-in digital screen that shows CPU and GPU temperature and usage. It comes with four ARGB fans and room for 360mm radiators, suiting white-themed gaming builds that need strong cooling.

Key features

  • Dual-status digital screen: shows CPU and GPU temperature, utilisation or both, controlled through DeepCool's app.
  • Four ARGB fans included: 3 x 140mm at the front and 1 x 120mm at the rear, so it's ready for airflow out of the box.
  • Big cooling headroom: fit 360mm radiators at the front or top, and CPU coolers up to 175mm tall.
  • Room for large GPUs: graphics cards up to 380mm long, with an integrated GPU support arm.
  • Easy to build and clean: magnetic hybrid glass and mesh side panel, magnetic dust filters and 26mm of cable space behind the motherboard tray.

Specifications

Model CH560 DIGITAL WH (R-CH560-WHAPE4D-G-1)
Dimensions (L x W x H) 458 x 230 x 471 mm
Net weight 7.7kg
Materials ABS, SPCC steel, tempered glass
Motherboard support Mini-ITX, Micro-ATX, ATX, E-ATX
Front I/O 1 x USB 3.0, 1 x USB Type-C, 1 x audio
Drive bays 2 x 3.5"; 2+1 x 2.5"
Expansion slots 7
Pre-installed fans Front 3 x 140mm ARGB; rear 1 x 120mm ARGB
Fan support Front 3 x 120/140mm; top 3 x 120mm or 2 x 140mm; rear 1 x 120/140mm; PSU shroud 2 x 120mm
Radiator support Front and top up to 360mm; rear 120/140mm
CPU cooler height Up to 175mm
GPU length Up to 380mm
Power supply ATX PS2, up to 170mm long

Compatibility

Fits Mini-ITX to E-ATX motherboards, ATX power supplies up to 170mm, GPUs up to 380mm and air coolers up to 175mm tall. DeepCool notes that with a 360mm radiator on top, the rear supports a 120mm fan only. Personalise the case with DeepCool PIXEL decorative case bits.

Who it's for

  • Suited to: gamers and builders who want a white, high-airflow case with live temperature readouts and space for large GPUs and 360mm liquid coolers.
  • Not suited to: small-form-factor builds, or power supplies longer than 170mm.

FAQs

What does the CH560 DIGITAL screen show?

CPU and GPU temperature, utilisation, or both, alternating every 5 seconds in combined mode.

How many fans are included?

Four ARGB fans: three 140mm at the front and one 120mm at the rear.

Does it fit a 360mm AIO?

Yes. DeepCool lists 360mm radiator support at the front and top.

What is the maximum GPU length?

Up to 380mm.
