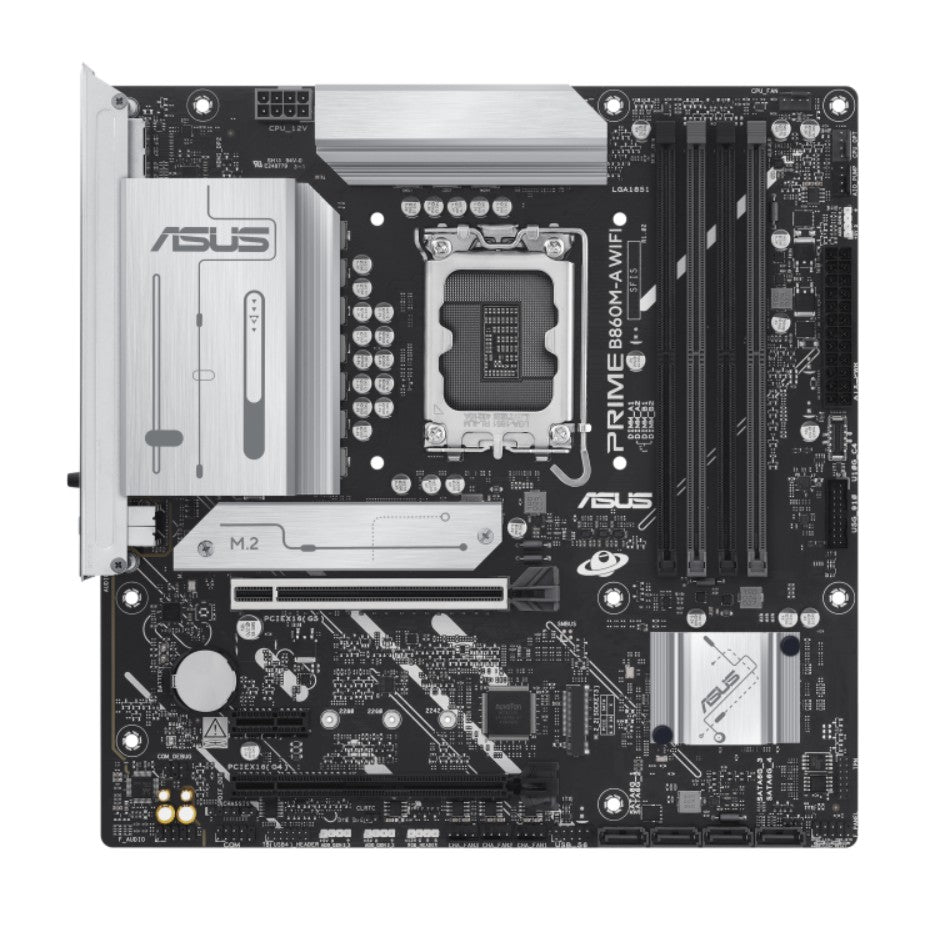

ASUS PRIME B860M-A WIFI-CSM Micro-ATX LGA1851 Motherboard, DDR5

$273.17

The ASUS PRIME B860M-A WIFI-CSM is a micro-ATX motherboard for Intel Core Ultra (Series 2) processors on socket LGA1851, suited to business desktops and home builds. It supports up to 256GB of DDR5 across four slots, a PCIe 5.0 graphics slot and PCIe 5.0 M.2 storage, with Wi-Fi 6E and 2.5Gb Ethernet built in.

Key features

  • Four DDR5 slots, up to 256GB: plenty of memory headroom, with XMP and CUDIMM support listed by ASUS.
  • PCIe 5.0 x16 slot and PCIe 5.0 M.2: room for current graphics cards and fast NVMe SSDs.
  • Wi-Fi 6E, Bluetooth 5.3 and Realtek 2.5Gb Ethernet: fast wired and wireless networking without add-in cards.
  • Three display outputs plus USB-C video: 2 x DisplayPort, 1 x HDMI and a rear USB 20Gbps Type-C port with DisplayPort output.
  • Micro-ATX, 24.4 x 24.4cm: fits compact office and home PC cases, with a pre-mounted I/O shield for easier installation.

Specifications

Brand / model ASUS PRIME B860M-A WIFI-CSM
CPU support Intel Core Ultra Processors (Series 2), LGA1851
Chipset Intel B860
Memory 4 x DIMM, max. 256GB, DDR5, up to 8666+MT/s (OC); Intel XMP; CUDIMM supported
Display outputs 2 x DisplayPort (4K@60Hz), 1 x HDMI (4K@60Hz), 1 x USB 20Gbps Type-C with DisplayPort output (up to 4K@120Hz)
Expansion slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 (x4 mode) and 1 x PCIe 4.0 x1 (chipset)
Storage M.2_1 PCIe 5.0 x4 (CPU), M.2_2 PCIe 4.0 x4 (chipset), both 2242/2260/2280; 4 x SATA 6Gb/s
Networking Realtek 2.5Gb Ethernet; Wi-Fi 6E (802.11ax, 2.4/5/6GHz); Bluetooth 5.3
Rear USB 1 x USB 20Gbps Type-C (DP Alt mode), 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0
Front USB 1 x USB 10Gbps Type-C connector, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
Audio Realtek 7.1 surround HD audio codec, 24-bit/192kHz playback
Form factor Micro-ATX, 24.4 x 24.4cm
In the box 2 x SATA cables, ASUS Wi-Fi Q-Antenna, M.2 rubber package, M.2 screw package, documentation
Operating system Windows 11 (22H2 and later), Windows 10 64-bit (21H2 and later)

Compatibility

  • Processors: Intel Core Ultra Processors (Series 2) on socket LGA1851 only.
  • Memory: DDR5 only, four DIMMs, up to 256GB.
  • Case: micro-ATX or larger cases that accept a 24.4 x 24.4cm board.

Who it's for

  • Suited to: office, small business and home desktop builds on Intel Core Ultra (Series 2) that want Wi-Fi 6E, PCIe 5.0 and room for up to 256GB of RAM in a compact case.
  • Not suited to: AMD processors, older Intel LGA1700 CPUs or DDR4 memory, or mini-ITX cases. For AMD AM5 builds, see the ASUS ROG Crosshair X870E Apex.

FAQs

Which CPUs work with the ASUS PRIME B860M-A WIFI-CSM?

ASUS lists Intel Core Ultra Processors (Series 2) on socket LGA1851.

How much RAM does it support?

Up to 256GB of DDR5 across four DIMM slots.

Does it have Wi-Fi?

Yes, it has Wi-Fi 6E and Bluetooth 5.3, plus Realtek 2.5Gb Ethernet.

Can I use the onboard display outputs?

Yes, it has 2 x DisplayPort, 1 x HDMI and a USB-C port with DisplayPort output, for use with a processor that has integrated graphics.

Browse more ASUS components and PCs.

  • SKU:
    PRIME B860M-A WIFI-CSM
  • Vendor :ASUS
  • Product Type :Motherboards
