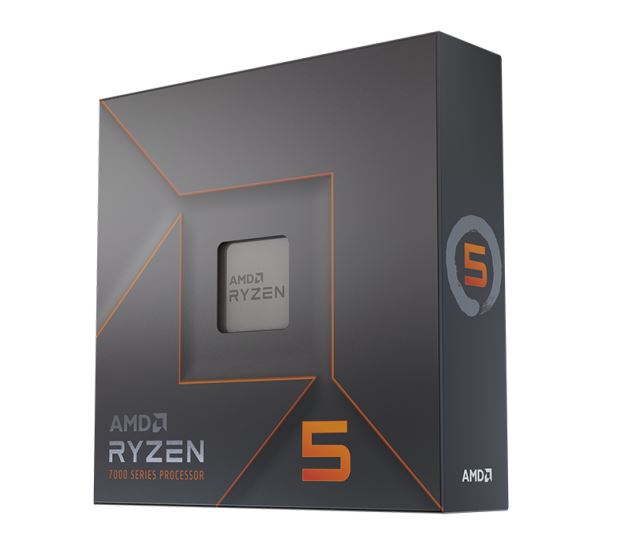

The AMD Ryzen 5 7600X is a 6-core, 12-thread AM5 desktop processor with a boost clock of up to 5.3GHz, built for gaming PCs and responsive everyday builds. It supports DDR5 memory and PCIe 5.0, is unlocked for overclocking and ships without a cooler (100-100000593WOF).
| Specification | Detail |
|---|---|
| Model | AMD Ryzen 5 7600X |
| Part number (boxed, without cooler) | 100-100000593WOF |
| CPU cores / threads | 6 / 12 |
| Max. boost clock | Up to 5.3GHz |
| Base clock | 4.7GHz |
| Cache | L1 384KB, L2 6MB, L3 32MB |
| Default TDP | 105W |
| Process technology | TSMC 5nm FinFET (CPU cores), TSMC 6nm FinFET (I/O die) |
| Unlocked for overclocking | Yes |
| Socket | AM5 |
| Supporting chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Memory | DDR5 (UDIMM), 2 channels, up to 128GB |
| Max. memory speed | DDR5-5200 (2x1R, 2x2R); DDR5-3600 (4x1R, 4x2R) |
| ECC support | Yes (requires motherboard support) |
| PCI Express | PCIe 5.0, 28 native lanes (24 usable) |
| Integrated graphics | AMD Radeon Graphics, 2 cores, 2200MHz |
| Native USB | 4x USB 3.2 Gen 2 (10Gbps), 1x USB 2.0 |
| Thermal solution | Not included (AMD recommends a premium air cooler) |
| Max. operating temperature | 95°C |
| OS support | Windows 11 and 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
| Supported technologies | AMD EXPO Technology, AMD Ryzen Technologies |
| Launch date | 27 September 2022 |
The Ryzen 5 7600X uses the AM5 socket. AMD lists these supporting chipsets:
It needs DDR5 memory; DDR4 is not supported. Check your motherboard maker's CPU support list before buying.
Suited to: gamers and PC builders putting together a new AM5 system, and anyone upgrading from an older platform who wants DDR5 and PCIe 5.0 support. A good match is the MSI B650 Gaming Plus WiFi AM5 motherboard.
Not suited to: AM4 motherboards or DDR4 memory, or buyers who expect a cooler in the box, as none is included.
No. This is the boxed version without a cooler (100-100000593WOF), and AMD recommends a premium air cooler for optimal performance.
Yes. It includes AMD Radeon Graphics with 2 graphics cores at 2200MHz, enough to run a display without a separate graphics card.
DDR5 only. AMD lists dual-channel DDR5 (UDIMM) up to 128GB, with speeds up to DDR5-5200 using two modules.
Yes. It is unlocked for overclocking and supports AMD EXPO Technology for memory profiles, on a compatible motherboard.
