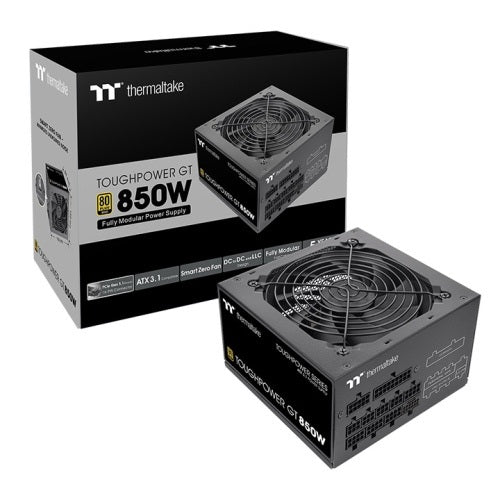

Thermaltake Toughpower GT 850W 80+ Gold ATX 3.1 Fully Modular PSU

$154.76

The Thermaltake Toughpower GT 850W is a fully modular, 80 Plus Gold power supply built to the ATX 3.1 standard, with a native PCIe 12V-2x6 (12+4-pin) cable for current graphics cards. It suits gaming and workstation builders who want efficient, quiet power and room to upgrade to a high-end GPU.

Key features

  • ATX 3.1 and PCIe 5.1 ready: supports up to 200% total power excursion and includes a native 12V-2x6 connector, so new GPUs can be powered without adapters.
  • 80 Plus Gold efficiency: up to 90% efficient, which means less wasted energy and heat.
  • Quiet cooling: a 120mm hydraulic bearing fan with Smart Zero Fan adjusts speed to keep noise down.
  • Fully modular, low-profile cables: connect only the cables you need for easier cable management and better airflow.
  • Stable power and protection: a single high-amperage +12V rail (70.8A) with LLC and DC-to-DC design, plus OCP, OVP, UVP, OPP, SCP and OTP protections.

Specifications

Part number PS-TPT-0850FNFAGA-3 (series P/N PS-TPT-0850FNFAG*-3)
Max output 850W
Form factor / standard ATX 3.1, PCIe Gen 5.1 ready
Efficiency 80 Plus Gold at 115Vac, up to 90%
Modularity Fully modular, low-profile cables
+12V rail Single rail, 70.8A
Connectors 1 x 24-pin, 2 x ATX 12V 4+4-pin, 4 x PCIe 6+2-pin, 1 x PCIe 12+4-pin (12V-2x6), 6 x SATA, 4 x peripheral 4-pin
Fan 120mm hydraulic bearing, Smart Zero Fan
PFC Active
AC input 100-240V, 10A max, 50-60Hz
Hold-up time >17ms at 80% load
Protections OVP, UVP, OCP, OPP, OTP, SCP
MTBF 100,000 hours minimum
Dimensions 150 (W) x 86 (H) x 140 (D) mm
Colour Black
Operating temperature 0°C to 40°C
Safety approvals Includes RCM, CE, CB, FCC, cTUVus
Warranty 5 years

Compatibility

Fits ATX cases that take a standard ATX power supply of 150 x 86 x 140 mm. The native 12V-2x6 (12+4-pin) cable powers graphics cards that use the PCIe 12+4-pin connector; Thermaltake advises following your GPU maker's recommended power requirements.

Who it's for

  • Suited to: new gaming or creator PCs, and upgrades to a graphics card that uses a 12V-2x6 / 12+4-pin connector. Pair it with a cooler such as the Thermaltake TH360 V2 ARGB Sync 360mm AIO.
  • Not suited to: small form factor cases that need an SFX power supply, or systems that need more than 850W.

FAQs

Is the Thermaltake Toughpower GT 850W ATX 3.1 compatible?

Yes. This version (P/N ending -3) is compatible with ATX 3.1 and includes a native PCIe 12V-2x6 connector.

Is it fully modular?

Yes. All cables are modular, low-profile cables.

How many PCIe connectors does it have?

It has four PCIe 6+2-pin connectors and one PCIe 12+4-pin (12V-2x6) connector.

What warranty does it have?

Thermaltake backs the Toughpower GT series with a 5-year warranty.
