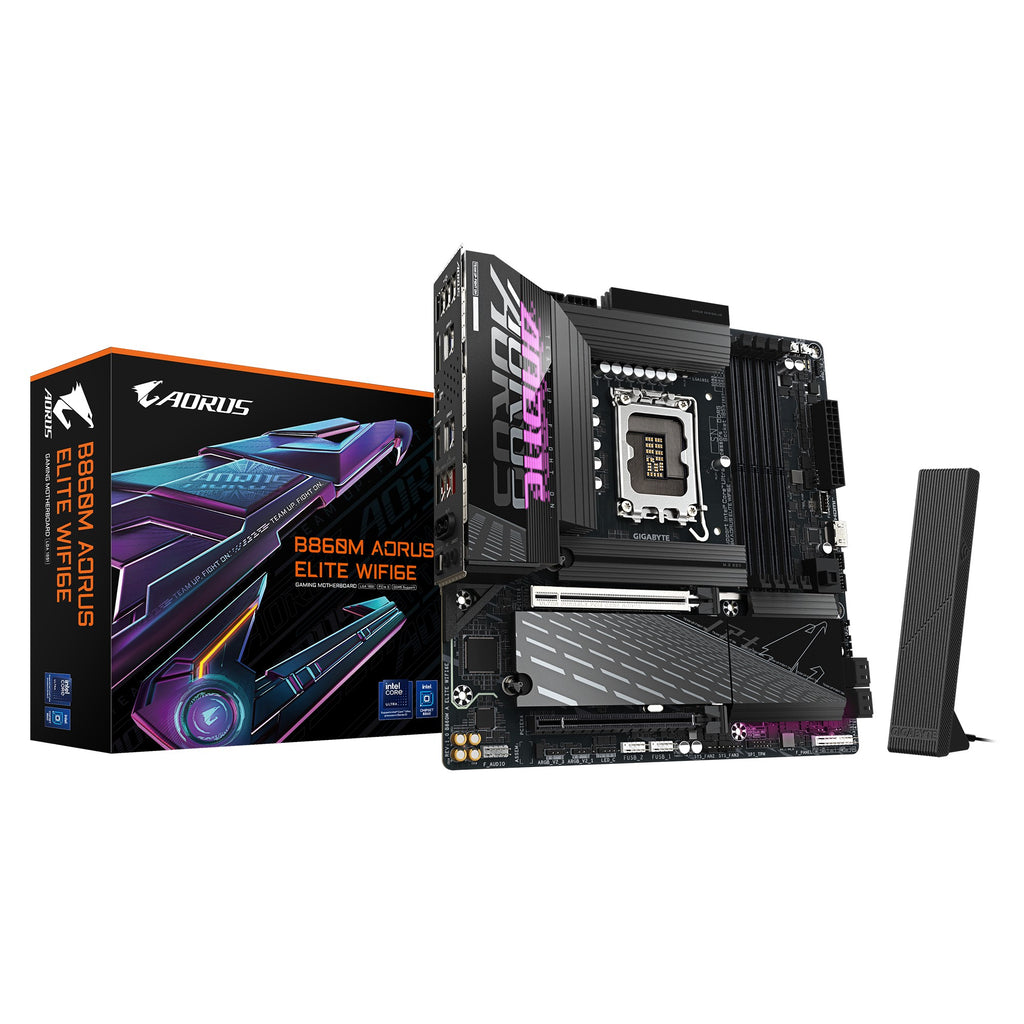

Gigabyte B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard

$340.23

The Gigabyte B860M AORUS ELITE WIFI6E is a Micro ATX motherboard for builders using Intel Core Ultra processors on LGA1851. It combines 4 DDR5 slots supporting up to 256GB, a PCIe 5.0 x16 slot, 2.5GbE LAN, Wi-Fi 6E and rear USB4 Type-C in a compact 24.4cm board.

Key features

  • Intel B860 chipset and LGA1851 socket: built for Intel Core Ultra processors.
  • 4 DDR5 DIMM slots: dual-channel memory up to 256GB, with support for XMP and speeds up to 9200 MT/s (O.C.).
  • PCIe 5.0 graphics and storage: a PCIe 5.0 x16 slot plus an M.2 slot from the CPU at PCIe 5.0 x4/x2.
  • Wi-Fi 6E and Bluetooth 5.3: 2.4, 5 and 6 GHz wireless, along with Realtek 2.5GbE wired LAN.
  • USB4 Type-C on the rear: a fast port that also carries DisplayPort.

Specifications

Brand Gigabyte
Model B860M AORUS ELITE WIFI6E
CPU socket LGA1851, Intel Core Ultra processors
Chipset Intel B860 Express
Memory 4 x DDR5 DIMM, up to 256GB (64GB per DIMM), dual channel, up to 9200 MT/s (O.C.)
Expansion slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
M.2 1 x PCIe 5.0 x4/x2 (2280), 2 x PCIe 4.0 x4/x2
SATA 4 x SATA 6Gb/s, RAID 0, 1, 5, 10
LAN Realtek 2.5GbE
Wireless Wi-Fi 6E 802.11a/b/g/n/ac/ax, Bluetooth 5.3 (Intel AX211 on PCB rev. 1.0)
Audio Realtek Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out
Rear USB 1 x USB4 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
Video outputs 1 x USB4 Type-C (DisplayPort), 1 x DisplayPort, 1 x HDMI (CPU dependent)
Form factor Micro ATX, 24.4 x 24.4cm
OS support Windows 11 64-bit

Compatibility

  • CPU: Intel Core Ultra processors for LGA1851
  • Memory: DDR5 only; speed and capacity depend on CPU and memory configuration
  • Case: Micro ATX or larger, such as the Gigabyte C102 GLASS case

Who it's for

  • Suited to: Micro ATX PC builds on Intel Core Ultra with fast wired and wireless networking. See our full Gigabyte range for other components.
  • Not suited to: older LGA1700 CPUs or DDR4 memory, as this board is LGA1851 and DDR5 only.

FAQs

What CPUs does this motherboard support?

It uses the LGA1851 socket and supports Intel Core Ultra processors.

How much RAM does it support?

It supports up to 256GB of dual-channel DDR5 across 4 DIMM slots, at 64GB per DIMM.

Does it have built-in Wi-Fi?

Yes, it has Wi-Fi 6E with Bluetooth 5.3, alongside 2.5GbE LAN.

Which video outputs does it have?

The rear has USB4 Type-C with DisplayPort, one DisplayPort and one HDMI, with support depending on the CPU.
