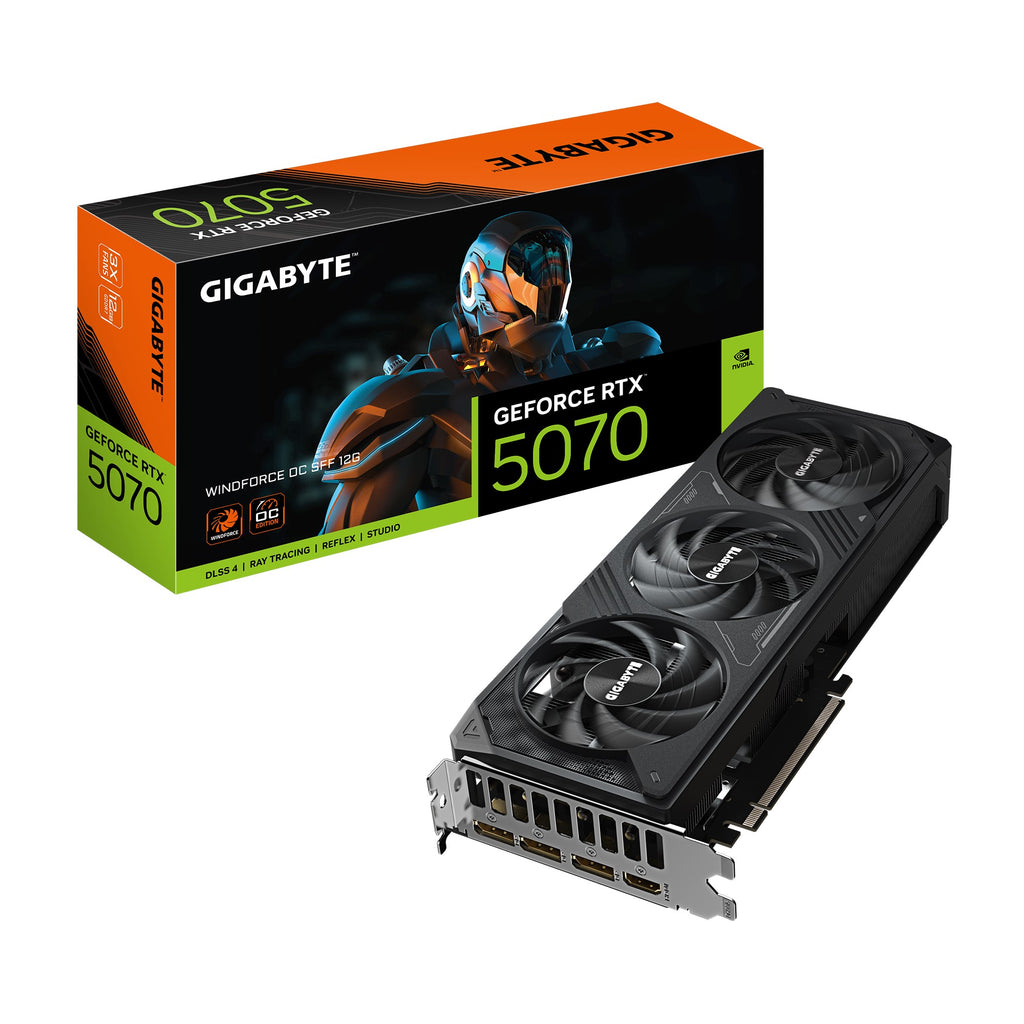

GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G GV-N5070WF3OC-12GD

$1,712.87

The GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G (GV-N5070WF3OC-12GD) is a factory-overclocked graphics card for gamers and creators building compact or full-size PCs. It pairs 12 GB of GDDR7 memory with NVIDIA's Blackwell architecture and a WINDFORCE cooler, in a card that meets NVIDIA's SFF-Ready size guidelines.

Key features

  • 2542 MHz factory overclock: runs above the 2512 MHz reference clock, with 6144 CUDA cores for gaming and creative work.
  • 12 GB GDDR7 on a 192-bit bus: 28 Gbps memory for high-resolution textures and creative workloads.
  • NVIDIA Blackwell features: fifth-gen Tensor cores and fourth-gen RT cores, with DLSS, Reflex and ray tracing support listed by GIGABYTE.
  • WINDFORCE cooling: Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate and server-grade thermal gel on VRAM and MOSFETs; fans stop at low load.
  • NVIDIA SFF-Ready, reinforced build: 282 x 110 x 50 mm card with a metal backplate fastened to the I/O bracket.

Specifications

Brand GIGABYTE
Model GeForce RTX 5070 WINDFORCE OC SFF 12G
Part number GV-N5070WF3OC-12GD
Graphics processor NVIDIA GeForce RTX 5070
Core clock 2542 MHz (reference card: 2512 MHz)
CUDA cores 6144
Memory 12 GB GDDR7, 192-bit, 28 Gbps
Card bus PCI-E 5.0
Digital max resolution 7680 x 4320
Multi-view 4 displays
Outputs 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Card size L 282 x W 110 x H 50 mm
PCB form ATX
APIs DirectX 12, OpenGL 4.6
Recommended PSU 750 W
Power connector 1 x 16-pin
In the box Quick guide, 1 x 12V-2x6 to 2 x PCIe 8-pin adapter

Compatibility

  • Card bus: PCI-E 5.0.
  • GIGABYTE recommends a 750 W power supply with a 16-pin connector, or two PCIe 8-pin cables using the included adapter.
  • Check your case fits a 282 mm long, 50 mm thick card.

Who it's for

Suited to: gamers and content creators who want RTX 5070 performance with 12 GB of fast GDDR7 memory, including small form factor builds that follow NVIDIA's SFF-Ready guidelines.

Not suited to: systems with power supplies under 750 W or very small cases that cannot fit a 282 mm card. Pair it with the GIGABYTE UD750GM PG5 V2 750W power supply, compare the GIGABYTE AORUS RTX 5070, or browse more GIGABYTE graphics cards and components.

FAQs

What power supply does the RTX 5070 WINDFORCE OC SFF need?

GIGABYTE recommends a 750 W power supply. The card uses one 16-pin connector, and a 12V-2x6 to dual PCIe 8-pin adapter is included.

How long is the card?

The card is 282 mm long, 110 mm wide and 50 mm high.

How many monitors can I connect?

Up to four, using three DisplayPort 2.1b outputs and one HDMI 2.1b output. GIGABYTE lists a digital maximum resolution of 7680 x 4320.

Is it factory overclocked?

Yes, the core clock is 2542 MHz, compared with 2512 MHz on the reference card.
