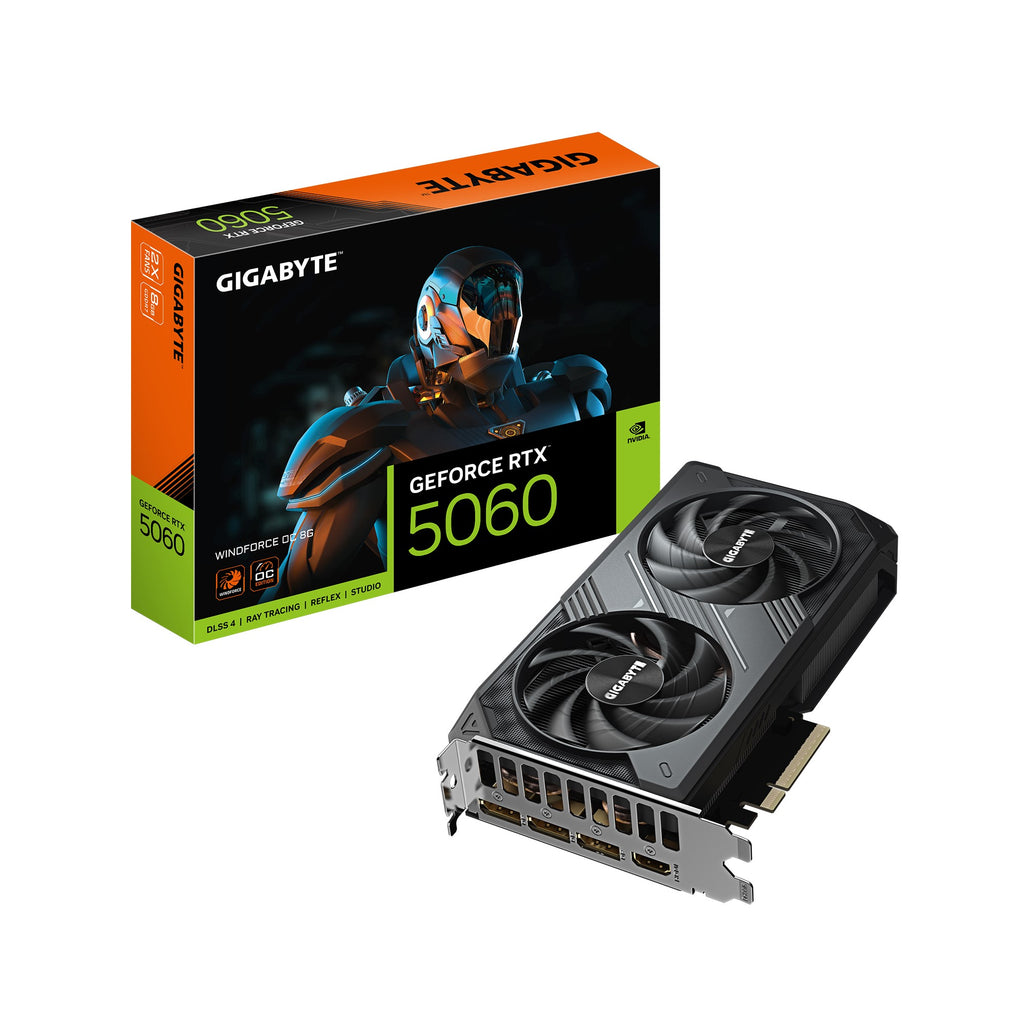

Gigabyte GeForce RTX 5060 WINDFORCE OC 8G GDDR7, GV-N5060WF2OC-8GD

$770.01

The Gigabyte GeForce RTX 5060 WINDFORCE OC 8G (GV-N5060WF2OC-8GD) is a graphics card with 8GB of GDDR7 memory and a 2512 MHz factory overclock. It suits PC gamers and creators upgrading to NVIDIA's Blackwell architecture with DLSS 4 and ray tracing, using a single 8-pin power connector.

Key features

  • GeForce RTX 5060 with DLSS 4: NVIDIA Blackwell architecture with fifth-generation Tensor Cores and fourth-generation RT cores for AI-boosted frame rates and ray tracing.
  • Factory overclocked to 2512 MHz: runs above the 2497 MHz reference clock out of the box.
  • 8GB GDDR7 at 28 Gbps: fast memory on a 128-bit bus for modern games and creative apps.
  • WINDFORCE cooling: Hawk fans (Gigabyte quotes up to 53.6% more air pressure and 12.5% more airflow), alternate-spinning fans, composite copper heat pipes and server-grade thermal gel on the VRAM and MOSFETs.
  • Quiet at light loads: 3D Active Fans stay off during low-load use, and graphene nano lubricant extends fan life by up to 2.1 times, according to Gigabyte.

Specifications

Model GV-N5060WF2OC-8GD
GPU NVIDIA GeForce RTX 5060
Core clock 2512 MHz (reference card: 2497 MHz)
CUDA cores 3840
Memory 8GB GDDR7, 128-bit, 28 Gbps
Bus interface PCI-E 5.0
Outputs 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum digital resolution 7680 × 4320
Multi-view 4 displays
Card size (L × W × H) 199 × 116 × 40
PCB form ATX
APIs DirectX 12, OpenGL 4.6
Recommended PSU 550W
Power connector 1 × 8-pin
In the box Graphics card, quick guide

Who it's for

  • Suited to: gamers and streamers building or upgrading a desktop PC who want DLSS 4 and ray tracing in a card with a single 8-pin power connector.
  • Not suited to: systems with a power supply below Gigabyte's recommended 550W, or users who want more than 8GB of video memory. Compare the Gigabyte RTX 5060 EAGLE OC 8G and the RTX 5060 WINDFORCE 2 MAX OC 8G, or browse all Gigabyte products.

FAQs

What power supply does the RTX 5060 WINDFORCE OC 8G need?

Gigabyte recommends a 550W power supply. The card uses one 8-pin power connector.

How many monitors can I connect?

Up to four displays, using three DisplayPort 2.1b outputs and one HDMI 2.1b output. Maximum digital resolution is 7680 × 4320.

How much memory does it have?

It has 8GB of GDDR7 memory on a 128-bit interface running at 28 Gbps.

Does it support DLSS 4?

Yes. The RTX 5060 uses NVIDIA's Blackwell architecture with fifth-generation Tensor Cores that support DLSS 4.

  • SKU:
    GV-N5060WF2OC-8GD
  • Vendor :Gigabyte
  • Product Type :Video/Graphics Cards
