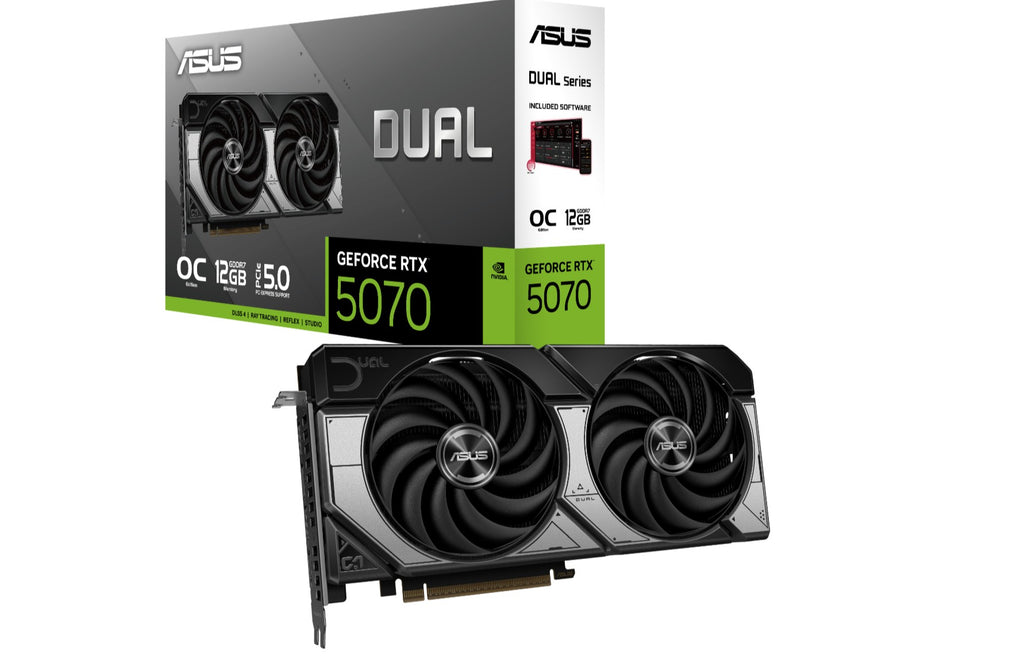

The ASUS Dual GeForce RTX 5070 12GB GDDR7 OC Edition is a dual-fan graphics card for gamers and creators building or upgrading a desktop PC. It pairs NVIDIA's GeForce RTX 5070 GPU and 6144 CUDA cores with 12GB of 28 Gbps GDDR7 memory in a 2.53-slot, SFF-ready design.
| Model | DUAL-RTX5070-O12G |
| Graphics engine | NVIDIA GeForce RTX 5070 |
| AI performance | 988 TOPS |
| Bus standard | PCI Express 5.0 |
| Video memory | 12GB GDDR7 |
| Engine clock | OC mode: 2572MHz; default mode: 2542MHz (boost clock) |
| CUDA cores | 6144 |
| Memory speed | 28 Gbps |
| Memory interface | 192-bit |
| OpenGL | OpenGL 4.6 |
| Max digital resolution | 7680 x 4320 |
| Outputs | 1 x native HDMI 2.1b, 3 x native DisplayPort 2.1b |
| HDCP | 2.3 |
| Max displays | 4 (simultaneous) |
| NVLink / CrossFire | No |
| Power connector | 1 x 16-pin |
| Recommended PSU | 750W |
| Slot | 2.53 slot |
| Dimensions | 249 x 126 x 50.6 mm |
| SFF Ready | Compatible |
| In the box | 1 x SpeedSetup manual, 1 x thank-you card, 1 x adapter cable (1 to 2) |
| Software | ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver and Studio Driver (download from the ASUS support site) |
The card uses a PCI Express 5.0 interface and needs a 16-pin power connection (a 1-to-2 adapter cable is included). ASUS recommends a 750W power supply, based on a fully overclocked GPU and CPU system. Check that your case has room for a 249 mm long, 2.53-slot card. A PCIe 5.0 motherboard such as the ASUS TUF GAMING B860-PLUS WIFI is a good match.
Suited to: gamers and creators upgrading or building a desktop PC with a 750W power supply, including small form factor builds.
Not suited to: systems with a lower-rated power supply or cases without room for a 2.53-slot card. If you prefer a different cooler design, compare the ASUS Prime GeForce RTX 5070 OC Edition; for more memory, see the ASUS TUF Gaming RTX 5070 Ti 16GB.
It has 12GB of GDDR7 memory on a 192-bit interface, running at 28 Gbps.
ASUS recommends a 750W power supply. The card uses one 16-pin power connector, and a 1-to-2 adapter cable is included.
Up to 4 at once, using 1 HDMI 2.1b and 3 DisplayPort 2.1b outputs.
ASUS lists it as SFF Ready. It measures 249 x 126 x 50.6 mm and takes 2.53 slots.
