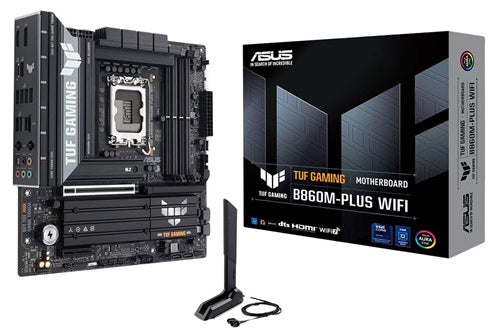

The ASUS TUF Gaming B860M-PLUS WiFi is a micro ATX motherboard for Intel Core Ultra (Series 2) processors on the LGA1851 socket. It suits gaming and home-office builders who want DDR5 memory, a PCIe 5.0 graphics slot, three M.2 slots, Wi-Fi 7 and 2.5Gb Ethernet on a compact, durable board.
| Model | ASUS TUF GAMING B860M-PLUS WIFI |
| CPU support | Intel Core Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel B860 |
| Memory | 4x DIMM, max. 256GB DDR5, up to 8800+ MT/s (OC), dual channel, non-ECC un-buffered, CUDIMM, XMP |
| Expansion slots | 1x PCIe 5.0 x16 (CPU); 1x PCIe 4.0 x4 (chipset) |
| Storage | M.2_1 2280 PCIe 5.0 x4; M.2_2 2242/2260/2280 PCIe 4.0 x4; M.2_3 2280 PCIe 4.0 x4; 4x SATA 6Gb/s (RAID 0/1/5/10) |
| Display outputs | 1x DisplayPort, 1x HDMI, 1x USB 20Gbps Type-C with DP Alt mode (4K@60Hz) |
| Networking | Realtek 2.5Gb Ethernet; 2x2 Wi-Fi 7 (802.11be), up to 2.9Gbps; Bluetooth 5.4 |
| Rear USB | 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 4x USB 5Gbps Type-A, 1x USB 2.0 Type-A |
| Front USB headers | 1x USB 10Gbps Type-C connector, 1x USB 5Gbps header (2 ports), 1x USB 2.0 header (2 ports) |
| Audio | Realtek 7.1 surround HD audio, 24-bit/192kHz; optical S/PDIF out |
| Fan headers | CPU fan, CPU OPT, AIO pump, 3x chassis fan (all 4-pin) |
| Power connectors | 1x 24-pin main, 2x 8-pin +12V |
| Other headers | 3x Addressable Gen 2 RGB, Thunderbolt (USB4) header, chassis intrusion, clear CMOS |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Operating system | Windows 11 (22H2 and later) |
| Form factor | mATX, 24.4 x 24.4 cm |
| In the box | 2x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, 2x M.2 rubber packages, M.2 screw package, TUF Gaming sticker, quick start guide |
Suited to: gamers and home or office builders putting together a compact Intel Core Ultra (Series 2) desktop that needs fast DDR5, PCIe 5.0 graphics and storage, and built-in Wi-Fi 7. Browse Intel processors and the full ASUS range to complete your build.
Not suited to: older Intel LGA1700 or AMD processors, full-size ATX builds needing more expansion slots, or ECC memory. For another ASUS B860 micro ATX option, compare the ASUS B860M-AYW Gaming WiFi.
Intel Core Ultra Processors (Series 2) on the LGA1851 socket. ASUS recommends checking its CPU support list for specific models.
Up to 256GB of DDR5 across four DIMM slots, with overclocked speeds up to 8800+ MT/s depending on the CPU and memory.
Yes. It has 2x2 Wi-Fi 7 (802.11be) on 2.4/5/6GHz and Bluetooth 5.4, with an ASUS WiFi Q-Antenna in the box. Wi-Fi 7 requires Windows 11 24H2 or later for full functions.
Three. One M.2 slot supports PCIe 5.0 x4 and two support PCIe 4.0 x4, alongside four SATA 6Gb/s ports.
