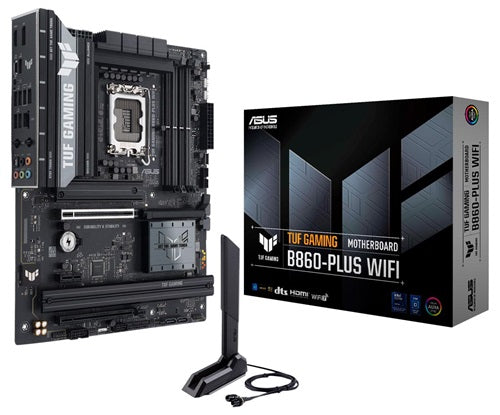

The ASUS TUF GAMING B860-PLUS WIFI is an ATX motherboard for Intel Core Ultra (Series 2) processors on the LGA1851 socket. It suits gaming and everyday desktop builds that need DDR5 memory, a PCIe 5.0 graphics slot, fast M.2 storage and built-in Wi-Fi 7.
| Socket / CPU support | LGA1851, Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| Form factor | ATX, 30.5 x 24.4 cm (12 x 9.6 in) |
| Memory | 4 x DDR5 DIMM, max 256GB, up to 8666+ MT/s (OC), dual channel, non-ECC unbuffered (incl. CUDIMM) |
| Expansion slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 (x4 mode, chipset); 1 x PCIe 4.0 x1 (chipset) |
| M.2 | M.2_1: 2280, PCIe 5.0 x4 (CPU); M.2_2: 2280/22110, PCIe 4.0 x4; M.2_3: 2242/2260/2280, PCIe 4.0 x4 |
| SATA | 4 x SATA 6Gb/s, RAID 0/1/5/10 |
| Video outputs | 1 x HDMI (4K@60Hz), 1 x DisplayPort (4K@60Hz), 1 x USB-C 20Gbps with DP Alt mode (4K@60Hz) |
| Rear USB | 1 x USB 20Gbps Type-C, 2 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A |
| Front USB | 1 x USB 10Gbps Type-C connector, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
| LAN | Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 7 (802.11be) 2x2, 2.4/5/6GHz, up to 2.9Gbps; Bluetooth 5.4 |
| Audio | Realtek 7.1 surround HD audio codec, optical S/PDIF out |
| Fan headers | CPU, CPU OPT, AIO pump, 4 x chassis (all 4-pin) |
| BIOS | 2 x 128Mb flash ROM, UEFI AMI BIOS, BIOS FlashBack button |
| In the box | 2 x SATA cables, ASUS WiFi Q-Antenna, 2 x M.2 rubber packages, M.2 SSD screw package, TUF GAMING sticker, quick start guide |
ASUS lists support for Intel Core Ultra Processors (Series 2) on the LGA1851 socket and DDR5 non-ECC, unbuffered memory (including CUDIMM). Supported operating system: Windows 11 (22H2 and later). For full Wi-Fi 7 functionality Windows 11 needs version 24H2 or later; earlier versions support Wi-Fi 6E only.
Suited to: gamers and home or office PC builders using an Intel Core Ultra (Series 2) CPU who want PCIe 5.0, three M.2 drives and Wi-Fi 7 on a full-size ATX board.
Not suited to: AMD processors or Intel processors for other sockets, or small cases that only fit Micro ATX. For a smaller board, see the ASUS TUF Gaming B860M-PLUS WiFi Micro ATX motherboard. For a Z890 chipset option, compare the ASUS PRIME Z890-P WIFI-CSM ATX motherboard.
It supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket, according to ASUS.
Up to 256GB of DDR5 across 4 DIMM slots, in dual-channel mode.
Yes, it has HDMI, DisplayPort and a USB-C port with DisplayPort output. ASUS notes that installing the operating system requires a monitor on the rear HDMI port or a discrete graphics card.
Yes, it has Wi-Fi 7 (2x2, up to 2.9Gbps) and Bluetooth 5.4, with an ASUS WiFi Q-Antenna in the box.
See more motherboards, graphics cards and peripherals in our ASUS range.
